OEM Ferrite Drum Core Inductor Radial Leaded Power Inductors Suppliers, Manufacturers

DR Inductor

Ferrite Drum Core Inductor Radial Leaded Power Inductors

Product parameters:

DL ow cost

Wide range of inductance

High relability

New Energy / Medical electronic/ Mechanical

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

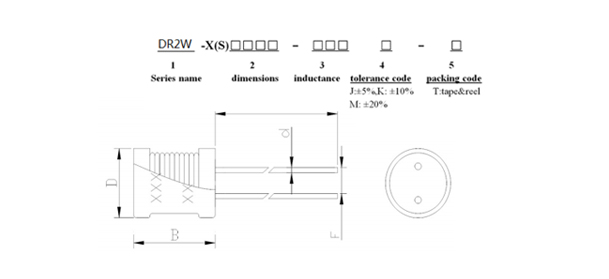

Mechanical dimensions

Type	Structure Type	Dimension(mm) AxBxC	(uH MIN)	Idc(Amps)	DCR (QMax)
DR2W0406-560K	Vertical	7x5x13	56	0.3	1.8
DR2W0406-680K	Vertical	7x5x13	68	0.3	2.2
DR2W0406-102K	Vertical	7x5x13	1000	0.1	20
DR2W0507-8R2M	Vertical	8x6x13	8.2	1.1	0.06
DR2W0507-100K	Vertical	8x6x13	10	1.0	0.08
DR2W0507-120K	Vertical	8x6x13	12	1.0	0.1
DR2W0507-152K	Vertical	8x6x13	1500	0.1	5
DR2W0608-270K	Vertical	9x7x13	27	1.0	0.15
DR2W0810-1R8M	Vertical	9x7x13	1.8	3.4	0.03
DR2W0810-2R2M	Vertical	9x7x13	2.2	3.3	0.01
DR2W0810-390K	Vertical	9x7x13	39	0.9	0.2
DR2W0810-271K	Vertical	9x7x13	270	0.3	0.8
DR2W0810-331K	Vertical	9x7x13	330	0.3	0.8
DR2W0810-103K	Vertical	9x7x13	1000	0.1	60
DR2W0912-121K	Vertical	13x10x13	120	0.7	0.35
DR2W0912-182K	Vertical	13x10x13	1800	0.1	3.5
DR2W1415-451K	Vertical	16x15x13	450	1.2	0.5
DR2W1415-302K	Vertical	16x15x13	3000	0.7	0.7
DR2W1415-402K	Vertical	16x15x13	4000	0.3	3.2

Product description:

The Ferrite Drum Core Inductor Radial Leaded Power Inductors are electronic additives designed for numerous packages, particularly inside the fields of New Energy, Medical Electronics, and Mechanical structures. Here are the key capabilities or product parameters related to these inductors:

1. **Low Cost:** These inductors are designed with fee-effectiveness in thoughts, making them a price-green preference for digital programs where price range concerns are important.

2. **Wide Range of Inductance:** The inductors offer a broad variety of inductance values, providing flexibility for one of a kind digital circuit designs. This versatility lets in engineers to choose the right inductance for their unique requirements.

3. **High Reliability:** Reliability is a vital aspect in electronic additives, especially in programs such as Medical Electronics. These inductors are designed to offer high reliability, making sure strong and steady performance over the years.

4. **Application Focus - New Energy/Medical Electronic/Mechanical:** The inductors are in particular tailor-made for programs in New Energy systems, Medical Electronics, and Mechanical gadgets. This indicates that they may be appropriate to be used in power-associated applications, clinical system, and mechanical structures.

In precis, the Ferrite Drum Core Inductor Radial Leaded Power Inductors provide a balance of low fee, a wide variety of inductance options, and high reliability. Their focused applications in New Energy, Medical Electronics, and Mechanical systems advise they may be properly-proper to be used in those particular fields.

Ferrite Drum Core Inductor Radial Leaded Power Inductors

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing Ferrite Drum Core Inductor Radial Leaded Power Inductors suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM Ferrite Drum Core Inductor Radial Leaded Power Inductors direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.
