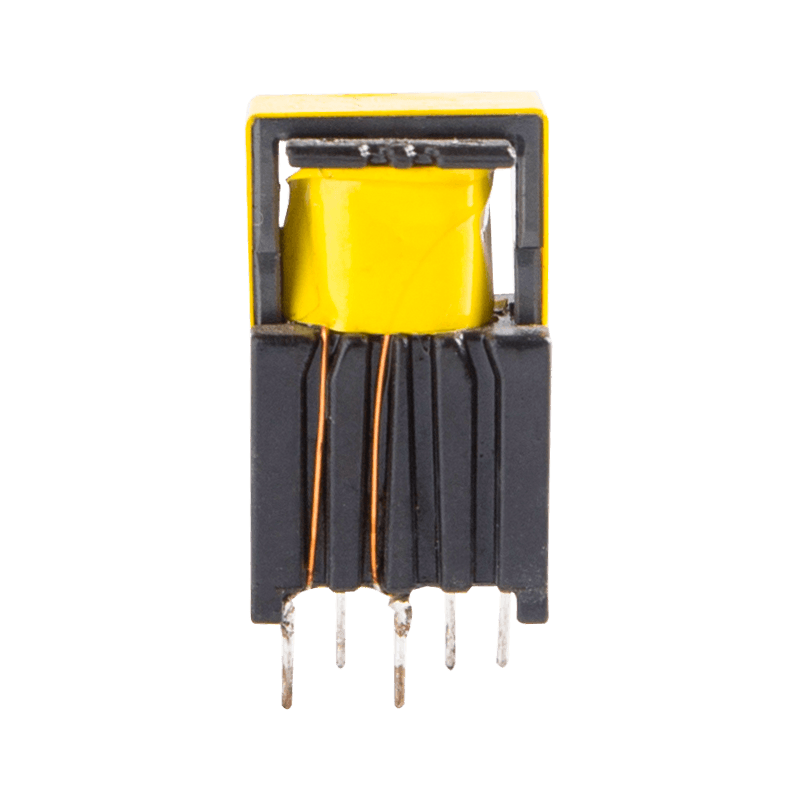

OEM EE13-003 High Frequency Switching power flyback transformer EE13 Suppliers, Manufacturers

Type	Structure Type	Dinension(mm)			PinRow 1(mm)		PmPitch 2(mm)		RowPitch (mm)	OD Pin (mm)	note
Type	Structure Type	A	B	C	Pin	Pin Pitch	Pin	Pin Pitch	RowPitch (mm)	OD Pin (mm)	note
EE05-001	Horizontal	6.0	5.2	5.0	3	1.85	3	1.85	7.70	SQ0 20*0.55	SMD
EE05-002	Horizontal	6.0	5.5	5.0	3	1.85	3	1.85	7.70	SQ0.20-0.55	SMD-double slot
EE08-001	Vertical	8.8	8.0	9.2	3	2.50	3	2.50	6.00	00.50
EE08002	Vertical	88	8.0	10.0	3	2.50	3	2.50	6.00	SQ0.40-0.40
EE08-003	Horizontal	88	9.0	9.5	2	5.00	2	5.00	6.80	SQ0.40-0.40	double slot
EE08-004	Horizontal	8.8	9.0	9.5	3	2.50	3	2.50	7.00	00.50	single slot
EE10-001	Vertical	10.5	10.0	11.0	4	2.50	4	2.50	8.00	00.50
EE10-002	Horizontal	11.0	12.5	110	4	2.50	4	2.50	10.50	00.60
EE10-003	Horizontal	11.0	11.5	11.0	2	5.00	2	5.00	9.00	00.60	double slot
EE10004	Horizontal	11.0	11.5	11.0	2	5.00	2	5.00	9.00	00.60	single slot
EE10-005	Horizontal	11.0	12.5	13.5	4	2.50	4	2.50	10.40	00.60	Core thickness7 5m
EE12-001	Horizontal	12.5	150	9.3	2	6.00	2	6.00	12.00	SQ0.50#0.50	double slot
EE12.5-001	Vertical	13.0	12.5	9.0	5	2.50	5	2.50	7.50	00.60
EE12.7-001	Vertical	12.8	12.3	11.0	5	2.50	5	2.50	8.50	00.60
EE13001	Vertical	10.5	12.5	13.0	3	3.00	3	3.00	9.00	00.60
EE13-002	Vertical	13.0	12.5	13.5	5	2.50	5	2.50	8.50	S00.50#0.50
EE 13-003	Vertical	15.5	16.5	14.5	5	2.50	2	3.00	13.00	00.60	Secondary side extension
EE13-004	Horizontal	14.0	14.0	13.5	5	2.50	5	2.50	10.30	00.60
EE13 005	Horizontal	14.0	17.8	13.5	5	2.50	4	3.00	15.50	00.60	Secondary side extension
EE13-006	Horizontal	14.0	19.9	13.8	5	2.70	2	9.00	16.00	00.60	Secondary side extension
EE14-001	Horizontal	15.0	15.0	8.0	2	6.00	2	6.00	12.00	00.60
EE16-001	Vertical	16.5	12.5	15.0	3	3.00	3	3.00	9.00	00.60
EE 16-002	Vertical	16.5	13.1	18.0	5	3.20	5	3.20	10.60	S00.50#0.50
EE 16003	Verilcal	16.5	12.5	15.0	2	9.00	2	9.00	9.60	00.60
EE16-004	Horizontal	19.5	10.5	16.5	5	3.25	6	3.25	15.50	00.80
EE 16-005	Horizontal	16.5	15.0	14.5	4	3.00	4	3.00	11.00	00.60
EE 16-006	Horizontal	16.5	16.0	14.5	5	2.50	5	2.50	13.00	00.60
EE16-007	Horizontal	16.5	19.0	13.5	5	2.50	5	2.50	15.50	00.70

Product description:

A High Frequency Switching Power Flyback Transformer is a important issue in switching power resources, inverters, and communications gadget. Here are the key information primarily based at the provided parameters:

1. **Input Voltage:**

- Range: -85V to 265V AC

- Frequency: 50/60Hz

2. **Output Voltage:**

- Range: 3.3V to 36V DC

3. **Power Output (Po):**

- Maximum Power Output: 3000W

4. **Product Features:**

- **High Working Frequency:** This means that the transformer operates at a excessive frequency, contributing to its performance and overall performance.

- **High Efficiency:** The transformer is designed to be electricity-green, changing enter electricity to output energy with minimal losses.

- **Small Size and Light Weight:** The transformer is compact and light-weight, making it suitable for programs wherein area and weight are critical considerations.

5. **Standards:**

- **UL:** Underwriters Laboratories, making sure safety and overall performance compliance.

- **VDE:** Verband der Elektrotechnik (Association for Electrical, Electronic, and Information Technologies), indicating adherence to German standards.

- **RoHS:** Restriction of Hazardous Substances, confirming that the product is loose from sure unsafe materials.

- **3C:** China Compulsory Certification, a mandatory product certification machine in China.

- **CQC:** China Quality Certification, demonstrating compliance with Chinese quality requirements.

6. **Applications:**

- The transformer is suitable for use in switching energy resources, inverters, and communications equipment.

- Its features make it specifically beneficial for programs where excessive efficiency, small size, and mild weight are essential.

In precis, this High Frequency Switching Power Flyback Transformer is designed to offer green and dependable electricity conversion in a compact shape element, meeting numerous safety and nice standards for global use.
