EI30 2.3VA PCB Encapsulated Transformer

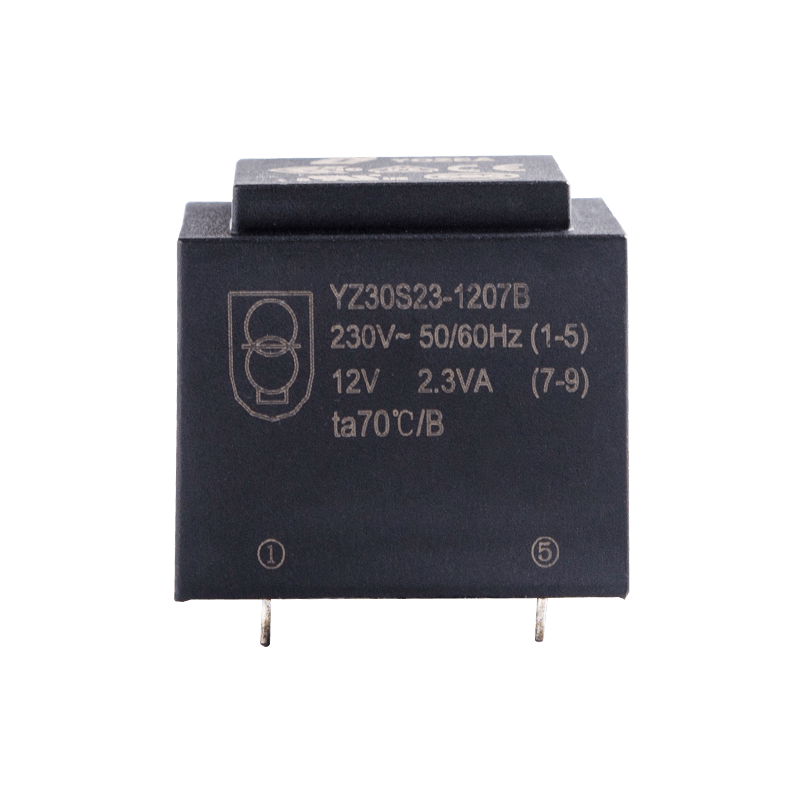

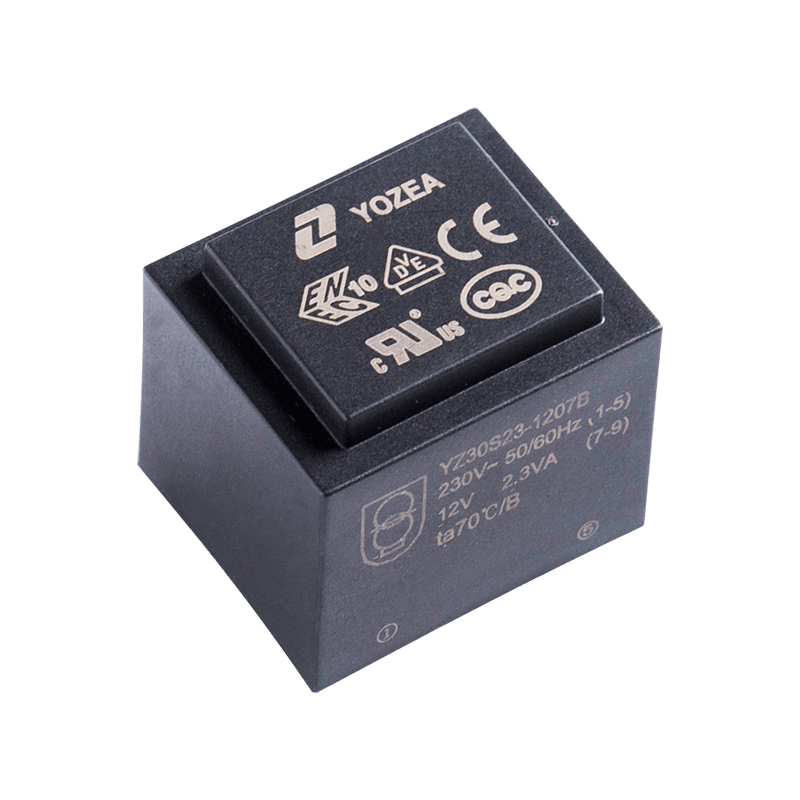

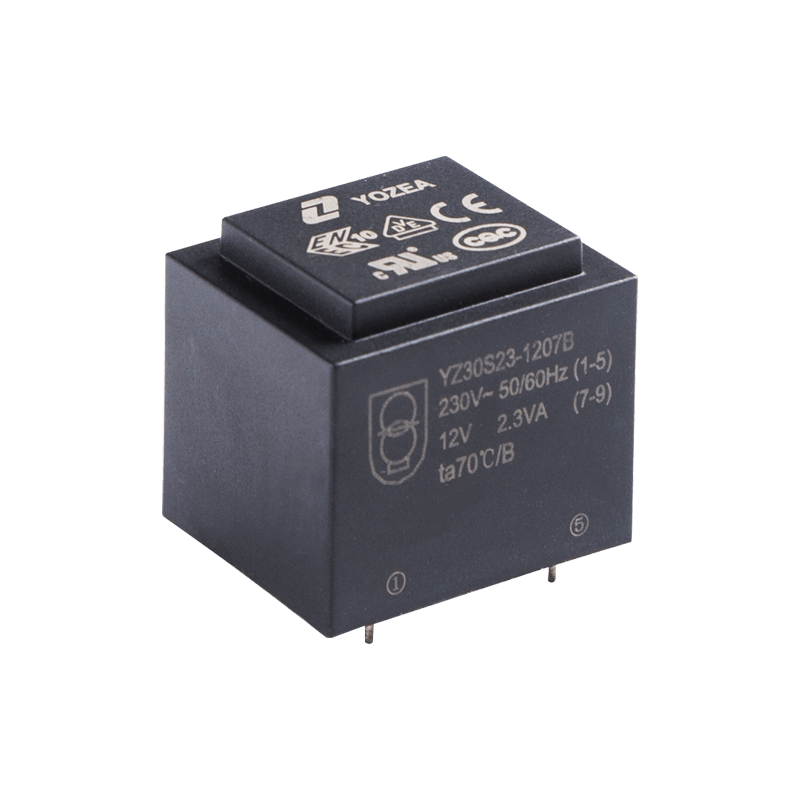

YZ30S23-1207B-EI30 Input 230V 220v Output 9V 12V mini transformer

· Core Type EI 30/18

· Power - 2.3VA

· Input voltage - 230V/115V/115VX2,50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 110g

industrial equipment/ Water Filter/ Dishwasher

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

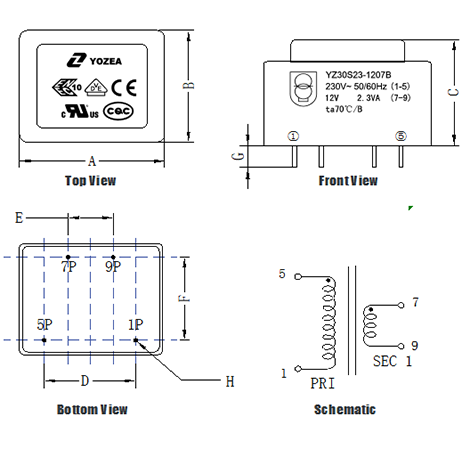

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage： 115V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30US23-0607B	115	6	383.3	10.7	1	ta 70/B
YZ30US23-0727B	115	7.2	319.4	12.8	1	ta 70/B
YZ30US23-0907B	115	9	255.6	16.1	1	ta 70/B
YZ30US23-1007B	115	10	230	17.8	1	ta 70/B
YZ30US23-1207B	115	12	191.7	21.4	1	ta 70/B
YZ30US23-1507B	115	15	153.3	26.8	1	ta 70/B
YZ30US23-1807B	115	18	127.8	32.1	1	ta 70/B
YZ30US23-2407B	115	24	95.8	42.8	1	ta 70/B
YZ30UD23-0607B	115	2x6	2x191.7	2x9.9	2	ta 70/B
YZ30UD23-0727B	115	2x7.2	2x159.7	2x11.9	2	ta 70/B
YZ30UD23-0907B	115	2x9	2x127.8	2x14.9	2	ta 70/B
YZ30UD23-1007B	115	2x10	2x115.0	2x16.6	2	ta 70/B
YZ30UD23-1207B	115	2x12	2x95.8	2x19.9	2	ta 70/B
YZ30UD23-1507B	115	2x15	2x76.7	2x24.9	2	ta 70/B
YZ30UD23-1807B	115	2x18	2x63.9	2x29.8	2	ta 70/B
YZ30UD23-2407B	115	2x24	2x47.9	2x39.8	2	ta 70/B

Primary Voltage： 115VX2
Part Number	Primary (V)	Secondary (V)	Secondary （mA）	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30XD23-0607B	2X115	2x6	2X191.7	2x9.9	3	ta 70/B
YZ30XD23-0907B	2X115	2xd	2X127.8	2x14.9	3	ta 70/B
YZ30XD23-1207B	2X115	2x12	2X95.8	2x19.9	3	ta 70/B
YZ30XD23-1507B	2X115	2x15	2X176.7	2x24.9	3	ta 70/B
YZ30XD23-1807B	2X115	2x18	2X63.8	2x29.8	3	ta 70/B
YZ30XD23-2407B	2X115	2x24	2X47.9	2x39.8	3	ta 70/B

Primary Voltage :230V

Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30S23-0607B	230	6	383.3	10.7	1	ta 70/B
YZ30S23-0727B	230	7.2	319.4	12.8	1	ta 70/B
YZ30S23-0907B	230	9	255.6	16.1	1	ta 70/B
YZ30S23-1007B	230	10	230.0	17.8	1	ta 70/B
YZ30S23-1207B	230	12	191.7	21.4	1	ta 70/B
YZ30S23-1507B	230	15	153.3	26.8	1	ta 70/B
YZ30S23-1807B	230	18	127.8	32.1	1	ta 70/B
YZ30S23-2407B	230	24	95.8	42.8	1	ta 70/B
YZ30D23-0607B	230	2x6	2x191.7	2x9.9	2	ta 70/B
YZ30D23-0727B	230	2x7.2	2x159.7	2x11.9	2	ta 70/B
YZ30D23-0907B	230	2x9	2x127.8	2x14.9	2	ta 70/B
YZ30D23-1007B	230	2x10	2x115.0	2x16.6	2	ta 70/B
YZ30D23-1207B	230	2x12	2x95.8	2x19.9	2	ta 70/B
YZ30D23-1507B	230	2x15	2x76.7	2x24.9	2	ta 70/B
YZ30D23-1807B	230	2x18	2x63.9	2x29.8	2	ta 70/B
YZ30D23-2407B	230	2x24	2x47.9	2x39.8	2	ta 70/6

Product description:

The Input 230V 220v Output 9V 12V Mini Transformer is a compact and efficient electricity transformer designed to convert enter voltages of 230V/220V to output voltages of 9V and 12V. This versatile transformer is built with first-rate components and adheres to enterprise requirements, making it appropriate for a variety of programs.

Key Properties:

Core Type: EI 30/18 - This shows the middle configuration, providing a balance among efficiency and size.

Power Capacity: 2.3VA - The transformer can manage a power load of up to two.Three Volt-Amperes, making it appropriate for low-power digital gadgets.

Input Voltage Options:

230V/115V/115VX2 - Flexible enter voltage alternatives permit compatibility with various electricity assets.

Frequency: 50/60Hz - The transformer can perform seamlessly at both 50Hz and 60Hz frequencies.

Insulation Class: Class B (one hundred thirty°C) - The transformer is designed to withstand better temperatures, with a class B insulation score making sure safety and reliability.

Ambient Temperature (ta): 70°C - The transformer can operate efficaciously in environments with an ambient temperature of as much as 70 stages Celsius.

Dielectric Strength: four,500Vrms - This indicates the transformer's potential to withstand high voltage, making sure safe and dependable overall performance.

Applications:

Suitable for numerous electronic gadgets requiring 9V or 12V electricity supply.

Ideal to be used in small digital home equipment, DIY tasks, and different low-power applications.

Compact Design:

The Mini Transformer is designed with a compact shape component, making it easy to combine into area-limited programs.

Safety and Reliability:

Built with great substances and adhering to insulation class standards, the transformer prioritizes safety and reliability in operation.

Whether you're running on digital projects, prototyping, or need a dependable energy supply on your gadgets, the Mini Transformer with its flexible specifications is a precious aspect to your electric needs.

YZ30S23-1207B-EI30 Input 230V 220v Output 9V 12V mini transformer

· Core Type EI 30/18

· Power - 2.3VA

· Input voltage - 230V/115V/115VX2,50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 110g

ENCAPSULATED
TRANSFORMERS (2.3VA) EI30

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ30S23-1207B-EI30 Input 230V 220v Output 9V 12V mini transformer suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ30S23-1207B-EI30 Input 230V 220v Output 9V 12V mini transformer direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates

1.CONFIGURATION ＆ DIMENSION：m/m

A	B	C	D	E	F	G	H
32.5±0.5	27.5±0.5	29.5±0.5	20.0±0.5	10.0±0.5	20.0±0.5	3.5±0.5	φ0.8±0.1

2.ELECTRONIC CHARACTER：

Input Voltage VAC	Input Power No Load (Pi)VA	Input Power Load (Pi)VA	Pri Current No Load (Ii)mA	Sec Voltage No Load (Vo)VAC	Sec Voltage (Vo)VAC	Sec Current (Io)mA	Output Power VA


230V	≤0.6W	≤5.0W	≤6.0mA	21.4V±10%	12.0V±10%	192mA(7-9)	2.3VA

3.INSULATION RESISTANCE:
THE INSULATION RESISTANCE BETWEEN COIL TO COIL AND COIL TO CORE IS OVER 100MΩ AT DC 500V.
4.DIELECTRIC STRENGTH:
A.3750V AC 50Hz 1mA BETWEEN PRI TO SEC FOR 60 SEC.
5.MATERIAL LIST:

NO.	ITEM	MATERIAL	MANUFACTURER	UL
1	CORE	AH1000	JIANGYIN HENGTONG ELECTRIC APPLIANCES CO LTD OR VARIOUS

2	BOBBIN	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

3	ENCLOSURE	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

4	WIRE	MW 79-C 155	ZHEJIANG LANGLI ELECTRIC EQUIPMENTS CO LTD	E222214

5	POTTING COMPOUND	21-2350-(XX)	RAMPF POLYMER SOLUTIONS GMBH ＆ CO KG	E111148

Max Ambient Temperature	Enameled Wire Temperature Rating	Input Voltage Range	Transformer Temperature Rise

ta 70℃	2UEW/155℃	230VAC±20%	≤35K

SPECIFICATION FOR APPROVAL
PART NO	PART NAME		DATE		PAGE
YZ30S23-1207B	EI30-18		2018/2/7		1/1
Hangzhou Yozea Electronic Co.,Ltd TEL:0571-85229805/FAX:0571-85229815 E-MAIL: [email protected] http://www.yozea.com		APP.		CHECK	DRAWN
