EI30 0.6VA PCB Encapsulated Transformer

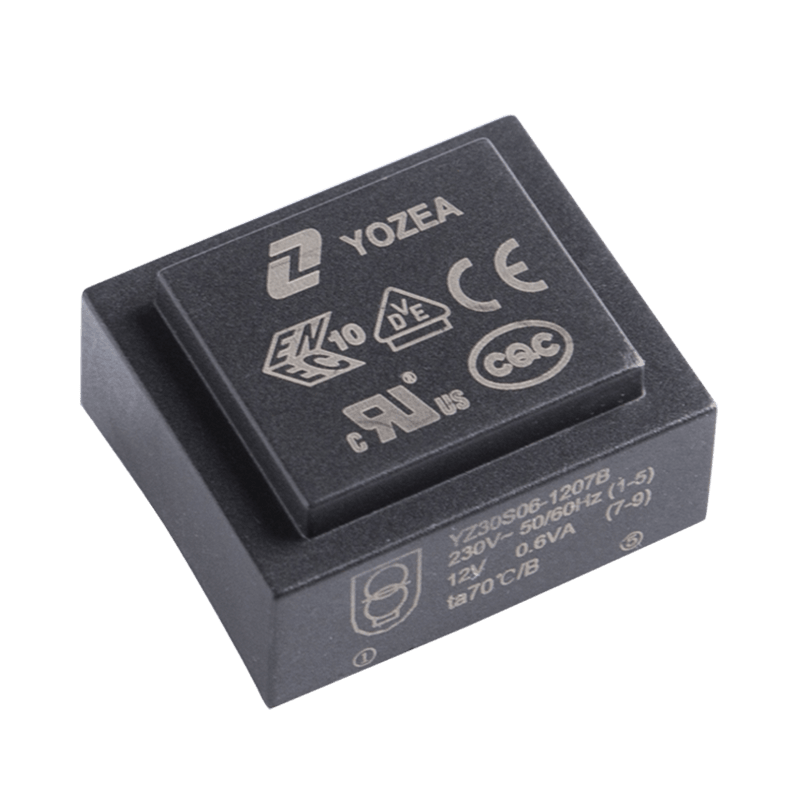

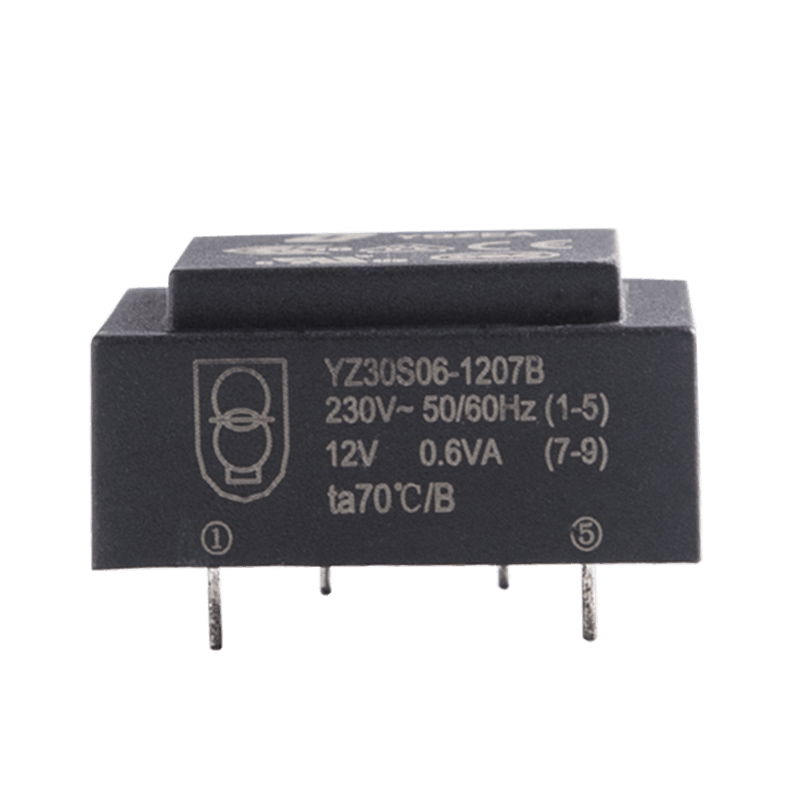

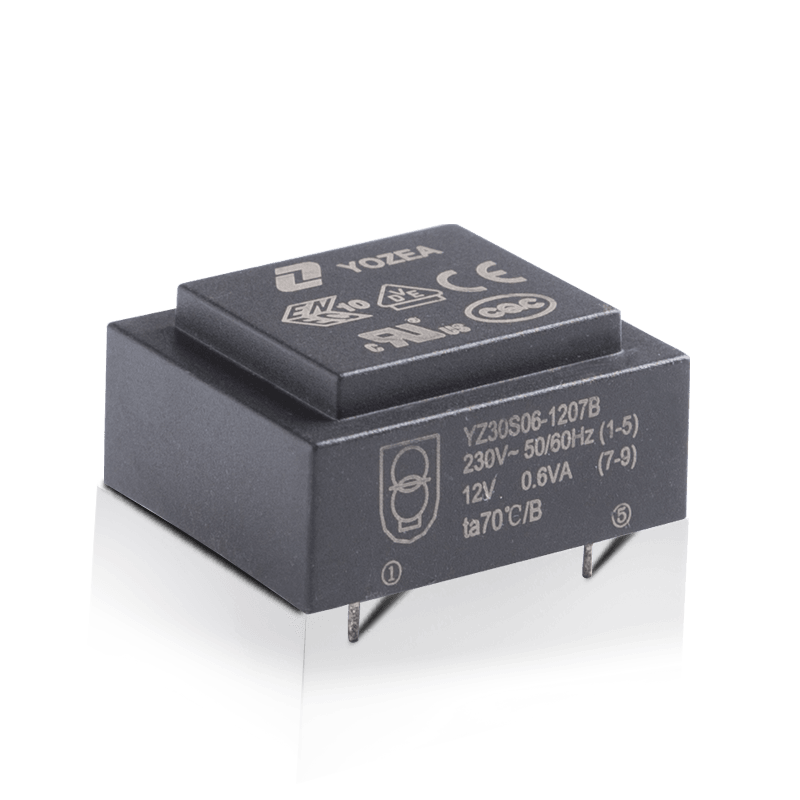

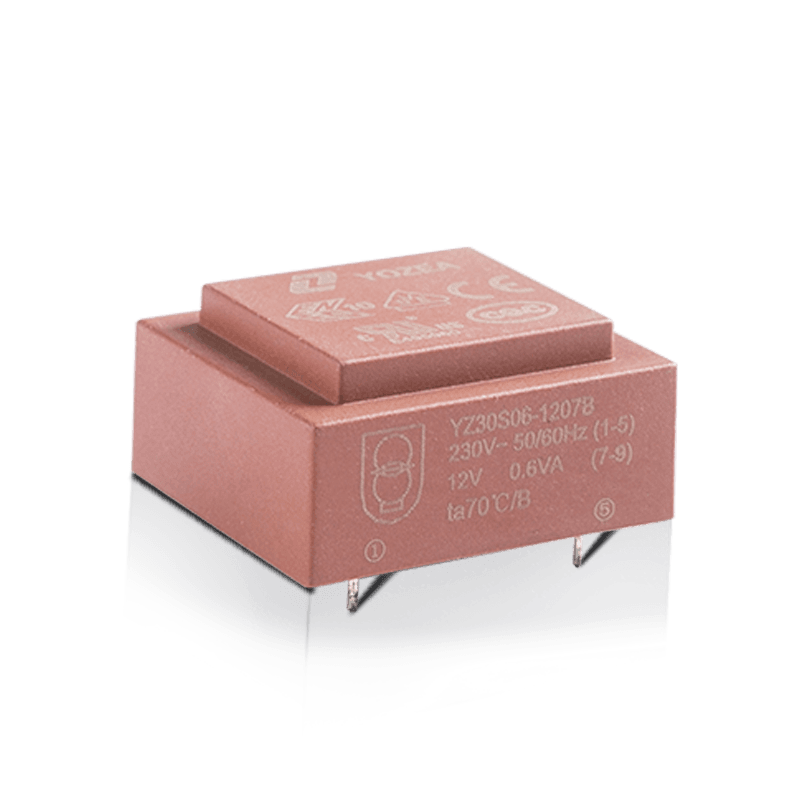

YZ30S06-1207B Small Size 0.6va Output 6v to 24v step down transformer

· Core Type EI 30/5

· Power - 0.6VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 43g

Microcontrollers/ Industrial electric meter/ Motor drive

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage： 115V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No-Load Voltage (V)	Schematic No.	Ambient Temperature
YZ30US06-0607B	115	6	100	10.0	1	ta 70/B
YZ30US06-0727B	115	7.2	83.3	11.7	1	ta 70/B
YZ30US06-0907B	115	9	66.7	14.7	1	ta 70/B
YZ30US06-1007B	115	10	60	16.3	1	ta 70/B
YZ30US06-1207B	115	12	50	19.5	1	ta 70/B
YZ30US06-1507B	115	15	40	24.5	1	ta 70/B
YZ30US06-1807B	115	18	33.3	28.8	1	ta 70/B
YZ30US06-2407B	115	24	25	39.3	1	ta 70/B
YZ30UD06-0607B	115	2x6	2x50	2x10.0	2	ta 70/B
YZ30UD06-0727B	115	2x7.2	2x41.7	2x11.7	2	ta 70/B
YZ30UD06-0907B	115	2x9	2x33.3	2x14.7	2	ta 70/B
YZ30UD06-1007B	115	2x10	2x30	2x16.3	2	ta 70/B
YZ30UD06-1207B	115	2x12	2x25	2x19.5	2	ta 70/B
YZ30UD06-1507B	115	2x15	2x20	2x24.5	2	ta 70/B
YZ30UD06-1807B	115	2x18	2x16.7	2x28.8	2	ta 70/B
YZ30UD06-2407B	115	2x24	2x12.5	2x39.3	2	ta 70/B

Primary Voltage： 115VX2
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No-Load Voltage (V)	Schematic No.	Ambient Temperature
YZ30XD06-0607B	2X115	2x6	2X50.0	2x10.0	3	ta 70/B
YZ30XD06-0907B	2X115	2x9	2X33.3	2x14.7	3	ta 70/B
YZ30XD06-1207B	2X115	2x12	2X25.0	2x19.5	3	ta 70/B
YZ30XD06-1507B	2X115	2x15	2X20.0	2x24.5	3	ta 70/B
YZ30XD06-1807B	2X115	2x18	2X16.7	2x28.8	3	ta 70/B
YZ30XD06-2407B	2X115	2x24	2X12.5	2x39.3	3	ta 70/B

Primary Voltage :230V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No-Load Voltage (V)	Schematic No.	Ambient Temperature
YZ30S06-0607B	230	6	100	10.0	1	ta 70/B
YZ30S06-0727B	230	7.2	83.3	11.7	1	ta 70/B
YZ30S06-0907B	230	9	66.7	14.7	1	ta 70/B
YZ30S06-1007B	230	10	60	16.3	1	ta 70/B
YZ30S06-1207B	230	12	50	19.5	1	ta 70/B
YZ30S06-1507B	230	15	40	24.5	1	ta 70/B
YZ30S06-1807B	230	18	33.3	28.8	1	ta 70/B
YZ30S06-2407B	230	24	25	39.3	1	ta 70/B
YZ30D06-0607B	230	2x6	2x50	2x10.0	2	ta 70/B
YZ30D06-0727B	230	2x7.2	2x41.7	2x11.7	2	ta 70/B
YZ30D06-0907B	230	2x9	2x33.3	2x14.7	2	ta 70/B
YZ30D06-1007B	230	2x10	2x30	2x16.3	2	ta 70/B
YZ30D06-1207B	230	2x12	2x25	2x19.5	2	ta 70/B
YZ30D06-1507B	230	2x15	2x20	2x24.5	2	ta 70/B
YZ30D06-1807B	230	2x18	2x16.7	2x28.8	2	ta 70/B
YZ30D06-2407B	230	2x24	2x12.5	2x39.3	2	ta 70/B

Testing Standard: IEC 61558-1:2005 (ed.2) + A1:2009 & IEC 61558-2-6:2009 (Second Edition)

Product description:

A small length 0.6VA (volt-ampere) output step-down transformer is a tool designed to convert electrical voltage from a better degree (in this situation, 6V to 24V) to a lower stage. The time period 0.6VA suggests the apparent power score of the transformer, that's the fabricated from its voltage and contemporary output. In this context, it indicates that the transformer can handle a maximum output energy of zero.6 watts.

The primary feature of a step-down transformer is to reduce the enter voltage to a lower stage. In your case, it takes an input voltage starting from 6V to 24V and transforms it to a decrease voltage. The output voltage will depend on the precise design and configuration of the transformer, however it'll be lower than the enter voltage.

This kind of transformer is commonly used in diverse electronic gadgets and programs where a decrease voltage is required for proper operation. It can be applied to power digital circuits, devices, or additives that operate at decrease voltages than the available input voltage.

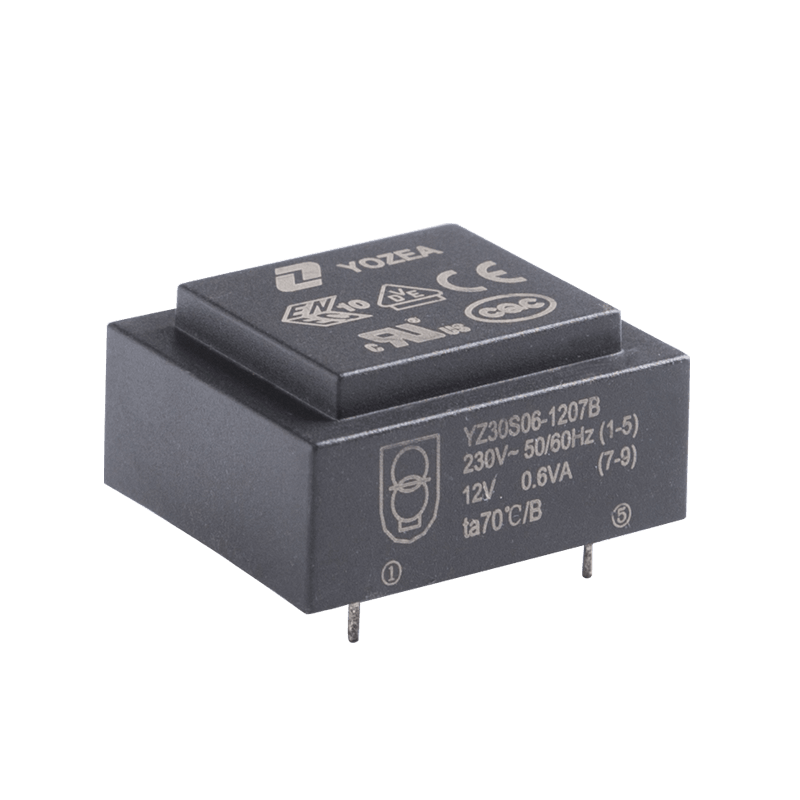

YZ30S06-1207B Small Size 0.6va Output 6v to 24v step down transformer

YZ30S06-1208B EI30 Electric ac ac transformer 230v to 12v PCB power supply

· Core Type EI 30/5

· Power - 0.6VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 43g

ENCAPSULATED
TRANSFORMERS (0.6VA) EE30

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ30S06-1207B Small Size 0.6va Output 6v to 24v step down transformer suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ30S06-1207B Small Size 0.6va Output 6v to 24v step down transformer direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates

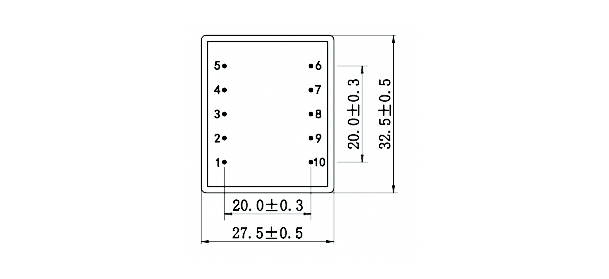

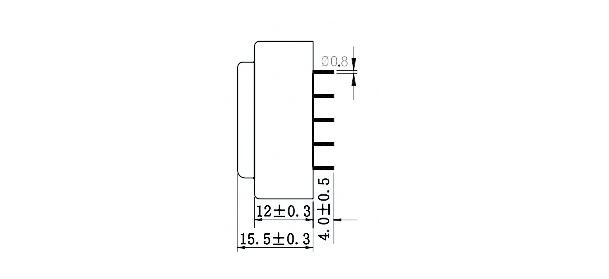

1.CONFIGURATION ＆ DIMENSION：m/m

A	B	C	D	E	F	G	H
32.5±0.5	27.5±0.5	15.2±0.5	20.0±0.5	10.0±0.5	20.0±0.5	3.5±0.5	φ0.8±0.1

2.ELECTRONIC CHARACTER：

Input Voltage VAC	Input Power No Load (Pi)VA	Input Power Load (Pi)VA	Pri Current No Load (Ii)mA	Sec Voltage No Load (Vo)VAC	Sec Voltage (Vo)VAC	Sec Current (Io)mA	Output Power VA


230V	≤2.0W	≤2.0W	≤25.0mA	19.7V±10%	12.0V±10%	50mA(7-9)	0.6VA

3.INSULATION RESISTANCE:
THE INSULATION RESISTANCE BETWEEN COIL TO COIL AND COIL TO CORE IS OVER 100MΩ AT DC 500V.
4.DIELECTRIC STRENGTH:
A.3750V AC 50Hz 1mA BETWEEN PRI TO SEC FOR 60 SEC.
5.MATERIAL LIST:

NO.	ITEM	MATERIAL	MANUFACTURER	UL
1	CORE	AH1000	JIANGYIN HENGTONG ELECTRIC APPLIANCES CO LTD OR VARIOUS

2	BOBBIN	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

3	ENCLOSURE	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

4	WIRE	MW 79-C 155	ZHEJIANG LANGLI ELECTRIC EQUIPMENTS CO LTD	E222214

5	POTTING COMPOUND	21-2350-(XX)	RAMPF POLYMER SOLUTIONS GMBH ＆ CO KG	E111148

Max Ambient Temperature	Enameled Wire Temperature Rating	Input Voltage Range	Transformer Temperature Rise

ta 70℃	2UEW/155℃	230VAC±20%	≤35K

SPECIFICATION FOR APPROVAL
PART NO	PART NAME		DATE		PAGE
YZ30S06-1207B	EI30-05		2018/2/6		1/1
Hangzhou Yozea Electronic Co.,Ltd TEL:0571-85229805/FAX:0571-85229815 E-MAIL: [email protected] http://www.yozea.com		APP.		CHECK	DRAWN
