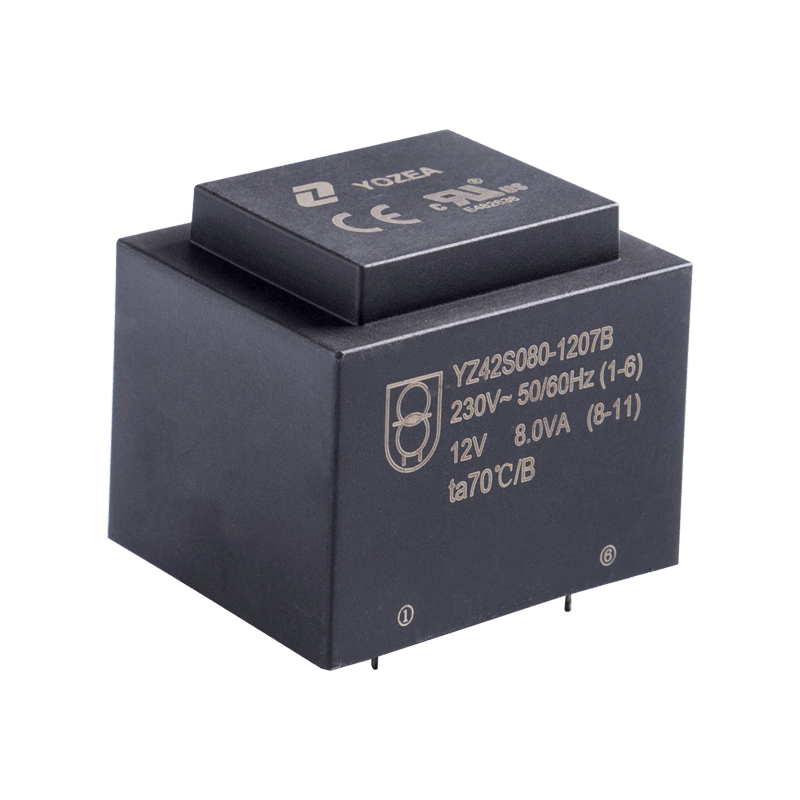

YZ42S060-1207B-Power 8VA Encapsulated Customized 12v 24v Transformer

· Core Type EI 42/14.8

· Rated Power Output - 6VA

· Input voltage - 230V/115V/115VX2, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 50°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 200g

Contact Us Inquiry PDF Download

(86)0571-85229813

[email protected]

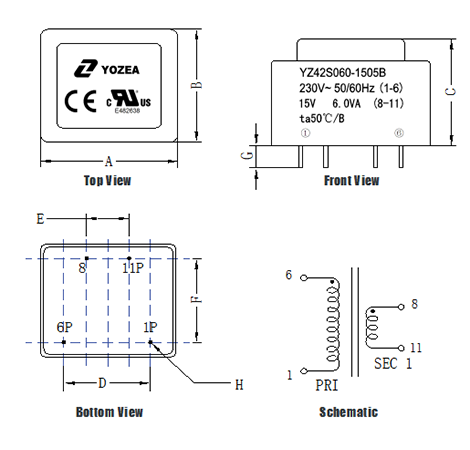

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage 115V

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ42US060-0605B

115

6

1000.0

8.4

1

ta50/B

YZ42US060-0905B

115

9

666.7

12.6

1

ta50/B

YZ42US060-1205B

115

12

500.0

16.7

1

ta50/B

YZ42US060-1505B

115

15

400.0

20.8

1

ta50/B

YZ42US060-1805B

115

18

333.3

25.0

1

ta50/B

YZ42US060-2405B

115

24

250.0

33.3

1

ta50/B

YZ42UD060-0605B

115

2X6

2X500.0

2X8.4

2

ta50/B

YZ42UD060-0755B

115

2X7.5

2X400.0

2X10.4

2

ta50/B

YZ42UD060-0905B

115

2X9

2X333.3

2X12.6

2

ta50/B

YZ42UD060-1205B

115

2X12

2X250.0

2X16.7

2

ta50/B

YZ42UD060-1505B

115

2X15

2X200.0

2X20.8

2

ta50/B

YZ42UD060-1805B

115

2X18

2X166.7

2X25.0

2

ta50/B

YZ42UD060-2405B

115

2X24

2X125.0

2X33.3

2

ta50/B

Primary Voltage 115V X 2

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ42XD060-0605B

2X115

2X6

2X500.0

2X8.4

3

ta50/B

YZ42XD060-0905B

2X115

2X9

2X333.3

2X12.6

3

ta50/B

YZ42XD060-1205B

2X115

2X12

2X250.0

2X16.7

3

ta50/B

YZ42XD060-1505B

2X115

2X15

2X200.0

2X20.8

3

ta50/B

YZ42XD060-1805B

2X115

2X18

2X166.7

2X25.0

3

ta50/B

YZ42XD060-2405B

2X115

2X24

2X125.0

2X33.3

3

ta50/B

Primary Voltage 230V

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ42S060-0605B

230

6

1000.0

8.4

1

ta50/B

YZ42S060-0905B

230

9

666.7

12.6

1

ta50/B

YZ42S060-1205B

230

12

500.0

16.7

1

ta 50/B

YZ42S060-1505B

230

15

400.0

20.8

1

ta50/B

YZ42S060-1805B

230

18

333.3

25.0

1

ta50/B

YZ42S060-2405B

230

24

250.0

33.3

1

ta50/B

YZ42D060-0605B

230

2X6

2X500.0

2X8.4

2

ta50/B

YZ42D060-0755B

230

2X7.5

2X400.0

2X10.4

2

ta50/B

YZ42D060-0905B

230

2X9

2X333.3

2X12.6

2

ta50/B

YZ42D060-1205B

230

2X12

2X250.0

2X16.7

2

ta50/B

YZ42D060-1505B

230

2X15

2X200.0

2X20.8

2

ta50/B

YZ42D060-1805B

230

2X18

2X166.7

2X25.0

2

ta50/B

YZ42D060-2405B

230

2X24

2X125.0

2X33.3

2

ta50/B



Product description:

The description 8VA Encapsulated Customized 12v 24v Transformer refers to a particular form of transformer with positive specs.
1. **8VA:** This in all likelihood suggests the obvious energy score of the transformer, measured in Volt-Amps (VA). In this example, it is 8VA.
2. **Encapsulated:** An encapsulated transformer approach that it's far enclosed in a shielding overlaying or casing. This presents insulation and protection against environmental factors like moisture, dust, and mechanical harm.
3. **Customized:** This indicates that the transformer has been tailored or modified consistent with precise requirements. Customization should contain modifications to voltage ratios, winding configurations, or different functions to fulfill the person's specific needs.
4. **12v 24v:** These values suggest the output voltage specifications of the transformer. It is designed to offer each 12 volts and 24 volts output, possibly with separate windings or taps on the transformer.
In summary, the 8VA Encapsulated Customized 12v 24v Transformer is a transformer with an 8VA rating, enclosed in a protective casing, and custom designed to provide each 12 volts and 24 volts as output. The customization factor allows it to be tailored for particular packages or requirements.

YZ42S060-1207B-Power 8VA Encapsulated Customized 12v 24v Transformer

 YZ42S060-1207B-Power 8VA Encapsulated Customized 12v 24v Transformer

· Core Type EI 42/14.8

· Rated Power Output - 6VA

· Input voltage - 230V/115V/115VX2, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 50°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 200g

ENCAPSULATED
TRANSFORMERS (6VA) EI42

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ42S060-1207B-Power 8VA Encapsulated Customized 12v 24v Transformer suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ42S060-1207B-Power 8VA Encapsulated Customized 12v 24v Transformer direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates
1.CONFIGURATION ＆ DIMENSION：m/m

A B C D E F G H
44.5±0.5 38.0±0.5 32.5±0.5 25.0±0.3 15.0±0.3 25.0±0.3 3.5±0.4 φ0.8±0.1
2.ELECTRONIC CHARACTER：
Input
Voltage
VAC		 Input Power
No Load
(Pi)VA		 Input Power
Load
(Pi)VA		 Pri Current
No Load
(Ii)mA		 Sec Voltage
No Load
(Vo)VAC		 Sec
Voltage
(Vo)VAC		 Sec
Current
(Io)mA		 Output
Power
VA
230V ≤1.2W ≤10.2W ≤25.0mA 21.2V±10% 15.0V±10% 400mA(8-11) 6VA



3.INSULATION RESISTANCE:
THE INSULATION RESISTANCE BETWEEN COIL TO COIL AND COIL TO CORE IS OVER 100MΩ AT DC 500V.
4.DIELECTRIC STRENGTH:
A.3750V AC 50Hz 1mA BETWEEN PRI TO SEC FOR 60 SEC.
5.MATERIAL LIST:
NO. ITEM MATERIAL MANUFACTURER UL
1 CORE AH1000 JIANGYIN HENGTONG ELECTRIC APPLIANCES CO LTD OR VARIOUS
2 BOBBIN 1403G(a) NAN YA PLASTICS CORP PLASTICS 3RD DIV E130155
3 ENCLOSURE 1403G(a) NAN YA PLASTICS CORP PLASTICS 3RD DIV E130155
4 WIRE MW 79-C 155 ZHEJIANG LANGLI ELECTRIC EQUIPMENTS CO LTD E222214
5 POTTING COMPOUND 21-2350-(XX) RAMPF POLYMER SOLUTIONS GMBH ＆ CO KG E111148

Max Ambient
Temperature		 Enameled Wire
Temperature Rating		 Input Voltage
Range		 Transformer
Temperature Rise
ta 50℃ 2UEW/155℃ 230VAC±20% ≤35K

SPECIFICATION FOR APPROVAL
PART NO PART NAME DATE PAGE
YZ42S060-1505B EI42/14.8 2018/7/12 1/1
Hangzhou Yozea Electronic Co.,Ltd
TEL:0571-85229805/FAX:0571-85229815
E-MAIL: [email protected]
http://www.yozea.com		 APP. CHECK DRAWN
