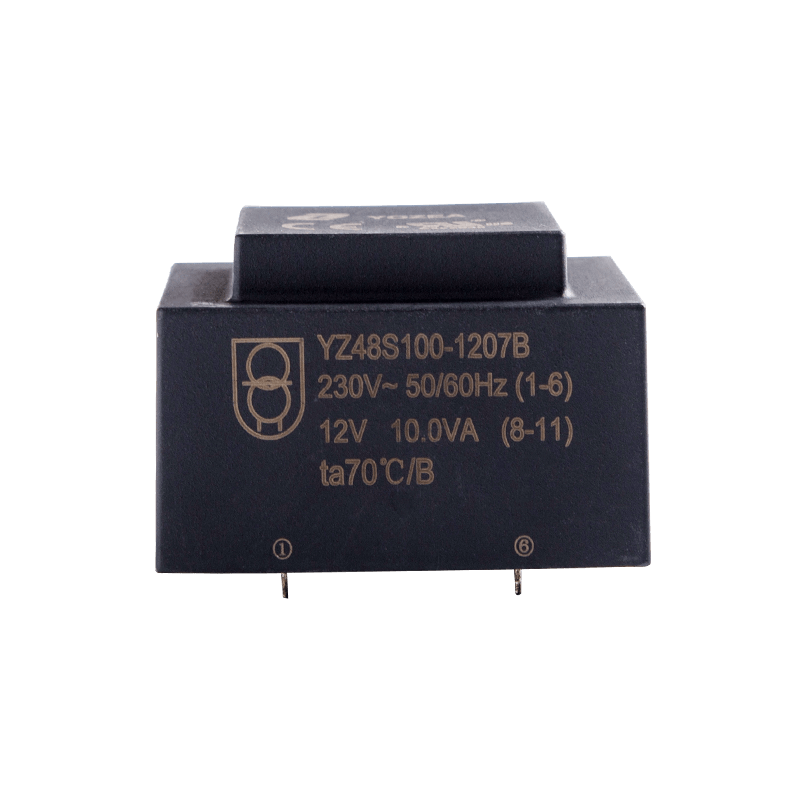

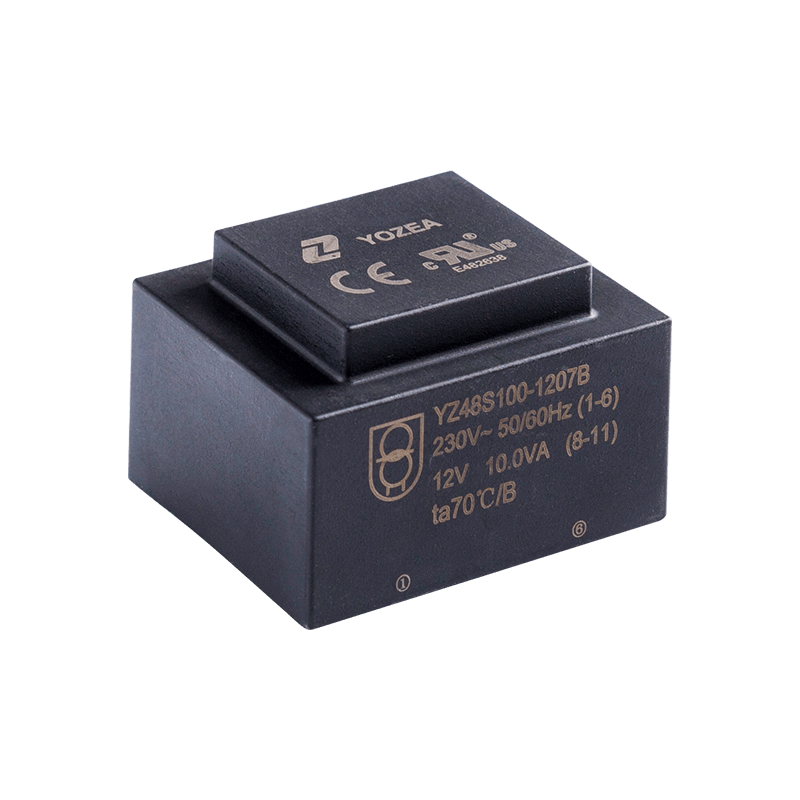

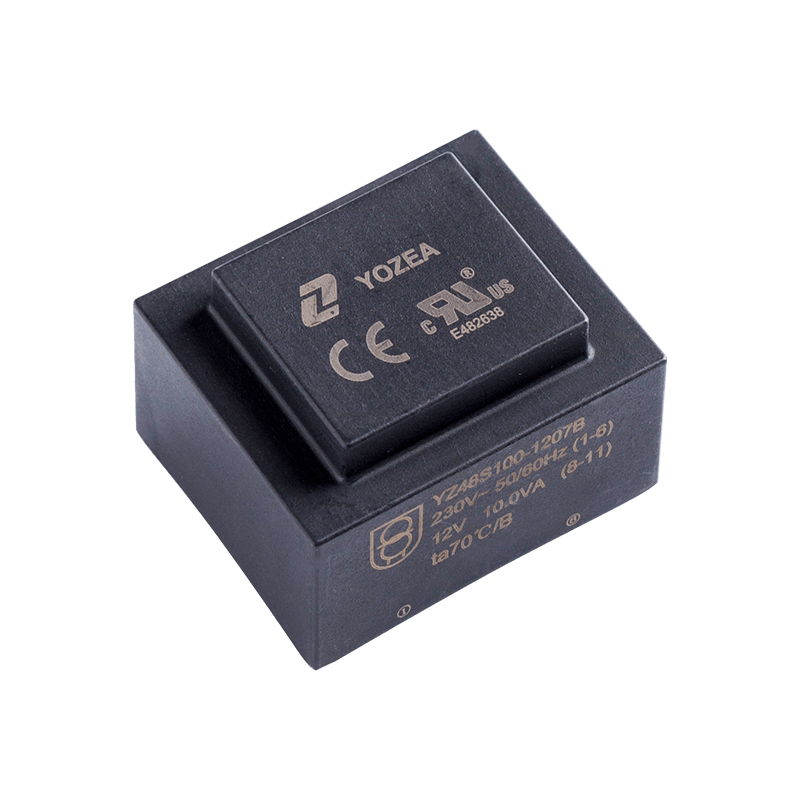

EI48 10VA PCB Encapsulated Transformer

YZ48S100-1207B-12v Encapsulated Pcb Mount Power Transformer 230v 10va

· Core Type EI 48/16.8

· Rated Power Output - 10VA

· Input voltage - 230V/115V/115VX2, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 295g

Electromechanical control panel/ keyless entry/ communication

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

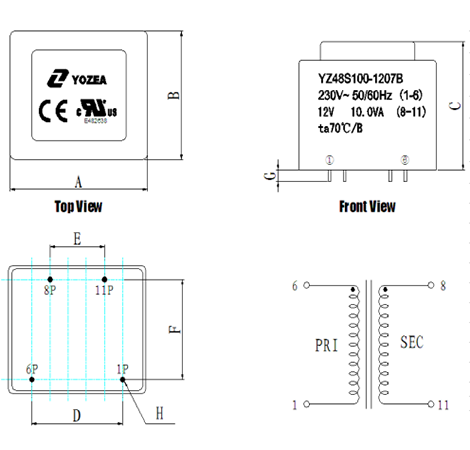

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage 115V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ48US100-0607B	115	6	1666.7	7.6	1	ta 70/B
YZ48US100-0907B	115	9	1111.1	11.4	1	ta 70/B
YZ48US100-1207B	115	12	833.3	15.2	1	ta70/B
YZ48US100-1507B	115	15	666.7	19.0	1	ta70/B
YZ48US100-1807B	115	18	555.6	22.8	1	ta70/B
YZ48US100-2407B	115	24	416.7	30.4	1	ta 70/B
YZ48UD100-0607B	115	2X6	2X833.3	2X7.6	2	ta70/B
YZ48UD100-0757B	115	2X7.5	2X666.7	2X9.5	2	ta 70/B
YZ48UD100-0907B	115	2X9	2X555.6	2X11.4	2	ta 70/B
YZ48UD100-1207B	115	2X12	2X416.7	2X15.2	2	ta70/B
YZ48UD100-1507B	115	2X15	2X333.3	2X19.0	2	ta70/B
YZ48UD100-1807B	115	2X18	2X277.8	2X22.8	2	ta 70/B
YZ48UD100-2407B	115	2X24	2X208.3	2X30.4	2	ta 70/B

Primary Voltage 115V X 2
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ48XD100-0607B	2X115	2x6	2X833.3	2x7.6	3	ta 70/B
YZ48XD100-0907B	2X115	2x9	2X555.6	2x11.4	3	ta 70/B
YZ48XD100-1207B	2X115	2x12	2X416.7	2x15.2	3	ta 70/B
YZ48XD100-1507B	2X115	2x15	2X333.3	2x19.0	3	ta 70/B
YZ48XD100-1807B	2X115	2x18	2X277.8	2x22.8	3	ta 70/B
YZ48XD100-2407B	2X115	2x24	2X208.3	2x30.4	3	ta 70/B

Primary Voltage 230V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ48S100-0607B	230	6	1666.7	7.6	1	ta 70/B
YZ48S100-0907B	230	9	1111.1	11.4	1	ta 70/B
YZ48S100-1207B	230	12	833.3	15.2	1	ta 70/B
YZ48S100-1507B	230	15	666.7	19	1	ta 70/B
YZ48S100-1807B	230	18	555.6	22.8	1	ta 70/B
YZ48S100-2407B	230	24	416.7	30.4	1	ta 70/B
YZ48D100-0607B	230	2X6	2X833.3	2X7.6	2	ta 70/B
YZ48D100-0757B	230	2X7.5	2X666.7	2X9.5	2	ta 70/B
YZ48D100-0907B	230	2X9	2X555.6	2X11.4	2	ta 70/B
YZ48D100-1207B	230	2X12	2X416.7	2X15.2	2	ta 70/B
YZ48D100-1507B	230	2X15	2X333.3	2X19.0	2	ta 70/B
YZ48D100-1807B	230	2X18	2X277.8	2X22.8	2	ta 70/B
YZ48D100-2407B	230	2X24	2X208.3	2X30.4	2	ta 70/B

Product description:

An Encapsulated PCB Mount Power Transformer with a specification of 230V and 10VA normally refers to a kind of transformer designed for revealed circuit board (PCB) mounting. Here's a breakdown of the important thing functions:

1. **Encapsulated Design:** The transformer is encapsulated, which means it's miles enclosed or sealed in a shielding fabric. This allows to protect the transformer from environmental elements which include moisture, dirt, and mechanical strain.

2. **PCB Mounting:** This transformer is designed to be set up immediately onto a broadcast circuit board. PCB mount transformers are compact and combine well into electronic circuits, saving space and facilitating ease of meeting.

3. **Voltage Rating (230V):** The transformer operates with an input or primary voltage of 230 volts. This is the voltage supplied to the transformer for it to perform its characteristic.

4. **Power Rating (10VA):** The energy score of the transformer is 10 volt-amperes (VA). This suggests the maximum apparent energy the transformer can manage. The VA rating is a measure of the overall capacity of the transformer.

In summary, this transformer is a compact and enclosed unit designed for clean mounting on a printed circuit board. It is suitable for packages where a energy transformer with a 230V enter and a strength managing ability of 10VA is needed. Applications may additionally encompass various electronic devices and system in which voltage transformation is vital.

YZ48S100-1207B-12v Encapsulated Pcb Mount Power Transformer 230v 10va

· Core Type EI 48/16.8

· Rated Power Output - 10VA

· Input voltage - 230V/115V/115VX2, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 295g

ENCAPSULATED
TRANSFORMERS (10VA) EI48

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ48S100-1207B-12v Encapsulated Pcb Mount Power Transformer 230v 10va suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ48S100-1207B-12v Encapsulated Pcb Mount Power Transformer 230v 10va direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates

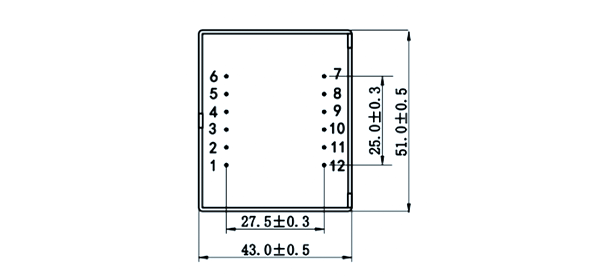

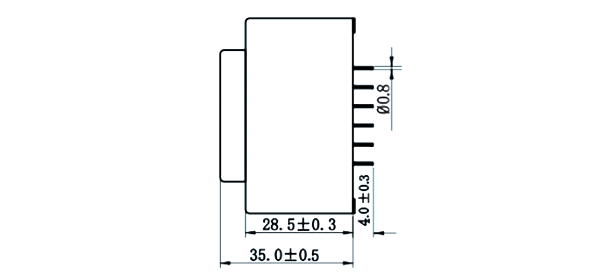

1.CONFIGURATION ＆ DIMENSION：m/m

A	B	C	D	E	F	G	H
51.0±0.5	43.0±0.5	34.2±0.5	25.0±0.3	15.0±0.3	27.5±0.3	3.5±0.5	φ0.8±0.1

2.ELECTRONIC CHARACTER：

Input Voltage VAC	Input Power No Load (Pi)VA	Input Power Load (Pi)VA	Pri Current No Load (Ii)mA	Sec Voltage No Load (Vo)VAC	Sec Voltage (Vo)VAC	Sec Current (Io)mA	Output Power VA


230V	≤1.0W	≤15.0W	≤35.0mA	15.2V±10%	12.0V±10%	833mA(8-11)	10VA

3.INSULATION RESISTANCE:
THE INSULATION RESISTANCE BETWEEN COIL TO COIL AND COIL TO CORE IS OVER 100MΩ AT DC 500V.
4.DIELECTRIC STRENGTH:
A.3750V AC 50Hz 1mA BETWEEN PRI TO SEC FOR 60 SEC.
5.MATERIAL LIST:

NO.	ITEM	MATERIAL	MANUFACTURER	UL
1	CORE	AH1000	JIANGYIN HENGTONG ELECTRIC APPLIANCES CO LTD OR VARIOUS

2	BOBBIN	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

3	ENCLOSURE	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

4	WIRE	MW 79-C 155	ZHEJIANG LANGLI ELECTRIC EQUIPMENTS CO LTD	E222214

5	POTTING COMPOUND	21-2350-(XX)	RAMPF POLYMER SOLUTIONS GMBH ＆ CO KG	E111148

Max Ambient Temperature	Enameled Wire Temperature Rating	Input Voltage Range	Transformer Temperature Rise

ta 70℃	2UEW/155℃	230VAC±20%	≤35K

SPECIFICATION FOR APPROVAL
PART NO	PART NAME		DATE		PAGE
YZ48S100-1207B	EI48/16.8		2018/7/12		1/1
Hangzhou Yozea Electronic Co.,Ltd TEL:0571-85229805/FAX:0571-85229815 E-MAIL: [email protected] http://www.yozea.com		APP.		CHECK	DRAWN
