OEM YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer

We produce Encapsulated Transformer, High frequency switching transformer, Low frequency power transformer, inductor and current transformer.

Home / Products / PCB Encapsulated Transformer / EI54 16VA PCB Encapsulated Transformer / YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer

EI54 16VA PCB Encapsulated Transformer

  • YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer
  • YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer
  • YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer

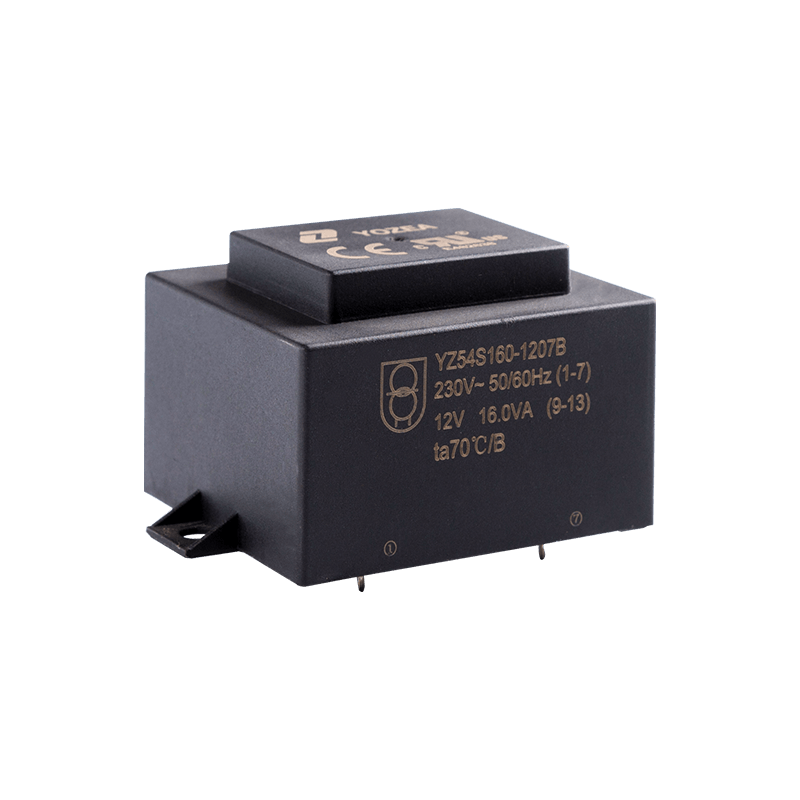

YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer

· Core Type EI 54/18

· Rated Power Output - 16VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 440g

Electrical Instruments/ lighting fitting/ Intelligent street lamp
Contact Us Inquiry PDF Download

(86)0571-85229813

[email protected]

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage 115V

Part Number

Primary (V)

Secondary (V)

Secondary (mA)

No-   Load Voltage   (V)

Schematic No.

Ambient Temperature

YZ54US160-0607B

115

6

2666.7

7.5

1

ta70/B

YZ54US160-0907B

115

9

1777.8

11.3

1

ta70/B

YZ54US160-1207B

115

12

1333.3

15.0

1

ta70/B

YZ54US160-1507B

115

15

1066.7

18.8

1

ta 70/B

YZ54US160-1807B

115

18

888.9

22.5

1

ta 70/B

YZ54US160-2407B

115

24

666.7

30.0

1

ta70/B

YZ54UD160-0607B

115

2X6

2X1333.3

2X7.5

2

ta70/B

YZ54UD160-0757B

115

2X7.5

2X1066.7

2X9.4

2

ta70/B

YZ54UD160-0907B

115

2X9

2X888.9

2X11.3

2

ta70/B

YZ54UD160-1207B

115

2X12

2X666.7

2X15.0

2

ta70/B

YZ54UD160-1507B

115

2X15

2X533.3

2X18.8

2

ta 70/B

YZ54UD160-1807B

115

2X18

2X444.4

2X22.5

2

ta 70/B

YZ54UD160-2407B

115

2X24

2X333.3

2X30.0

2

ta70/B



Primary Voltage 230V

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)



No-   Load Voltage   (V)

Schematic   No.

Ambient   Temperature

YZ48S100-0607B

230

6

1666.7

7.6

1

ta 70/B

YZ48S100-0907B

230

9

1111.1

11.4

1

ta 70/B

YZ48S100-1207B

230

12

833.3

15.2

1

ta 70/B

YZ48S100-1507B

230

15

666.7

19

1

ta 70/B

YZ48S100-1807B

230

18

555.6

22.8

1

ta 70/B

YZ48S100-2407B

230

24

416.7

30.4

1

ta 70/B

YZ48D100-0607B

230

2X6

2X833.3

2X7.6

2

ta 70/B

YZ48D100-0757B

230

2X7.5

2X666.7

2X9.5

2

ta 70/B

YZ48D100-0907B

230

2X9

2X555.6

2X11.4

2

ta 70/B

YZ48D100-1207B

230

2X12

2X416.7

2X15.2

2

ta 70/B

YZ48D100-1507B

230

2X15

2X333.3

2X19.0

2

ta 70/B

YZ48D100-1807B

230

2X18

2X277.8

2X22.8

2

ta 70/B

YZ48D100-2407B

230

2X24

2X208.3

2X30.4

2

ta 70/B



Product description:

The 16VA Encapsulated Power Transformer is a type of transformer designed for electronic programs in which a compact and sealed layout is needed. Here's a breakdown of its key functions:
1. **Power Rating (16VA):** The transformer has a power rating of sixteen volt-amperes (VA). This indicates its capacity to address electrical power.
2. **Encapsulated Design:** The transformer is encapsulated, that means it's miles enclosed in a defensive cloth. This facilitates to protect it from environmental elements which include moisture, dirt, and other contaminants. The encapsulation additionally provides mechanical safety.
3. **PCB Mountable:** This transformer is designed for PCB (Printed Circuit Board) mounting. It can be immediately installed onto a circuit board, which is common in many digital devices.
4. **Sealed Construction:** The transformer is sealed to prevent the ingress of moisture and different external factors. This complements its sturdiness and reliability, making it suitable for packages wherein environmental conditions may range.
In summary, the 16VA Encapsulated Power Transformer is a compact, sealed, and PCB-mountable transformer with a strength rating of 16VA. Its design makes it suitable for numerous electronic packages, particularly the ones requiring protection towards environmental elements.

YZ54D160-0907B-EI54 pcb mount dry type encapsulated transformer 230v to 12v

 YZ54D160-0907B-EI54 pcb mount dry type encapsulated transformer 230v to 12v

YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer

 YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer

· Core Type EI 54/18

· Rated Power Output - 16VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 440g

ENCAPSULATED
TRANSFORMERS (16VA) EI54

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ54D160-1207B-230V 16VA Encapsulated Power Transformer PCB Mount Sealed Transformer direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates
