EP series

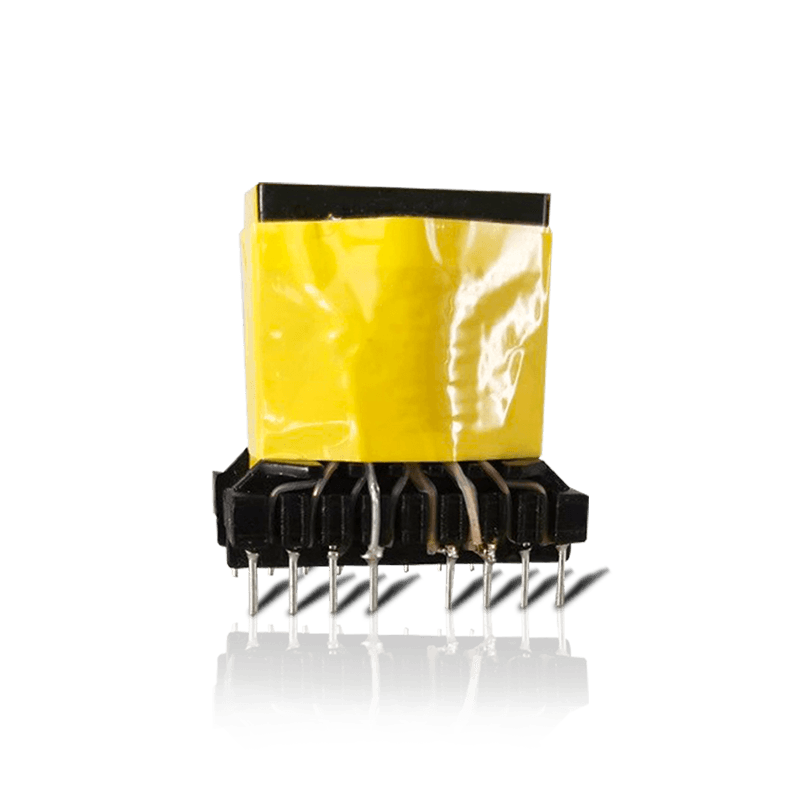

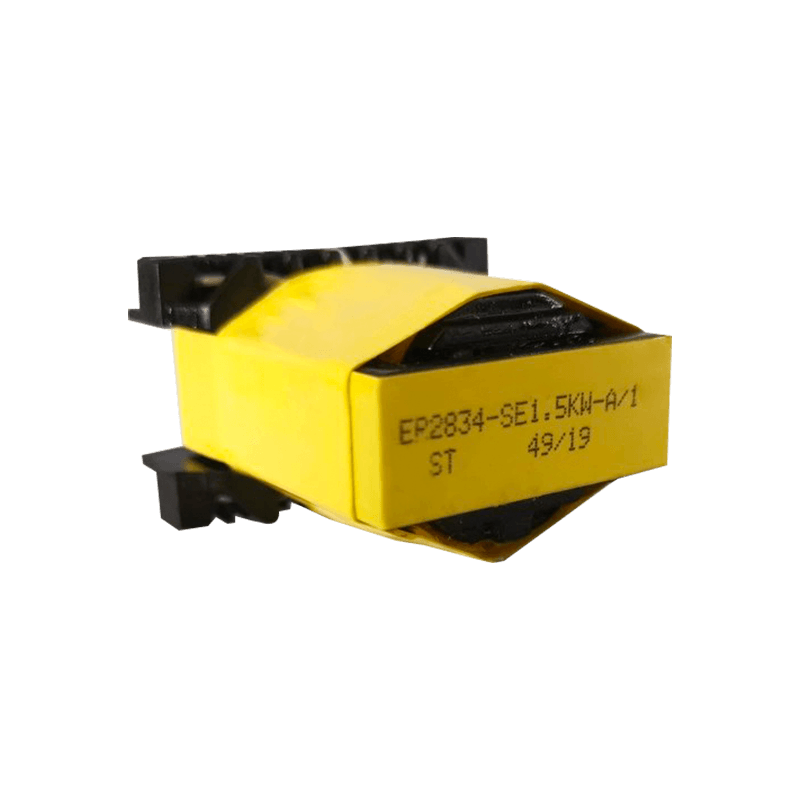

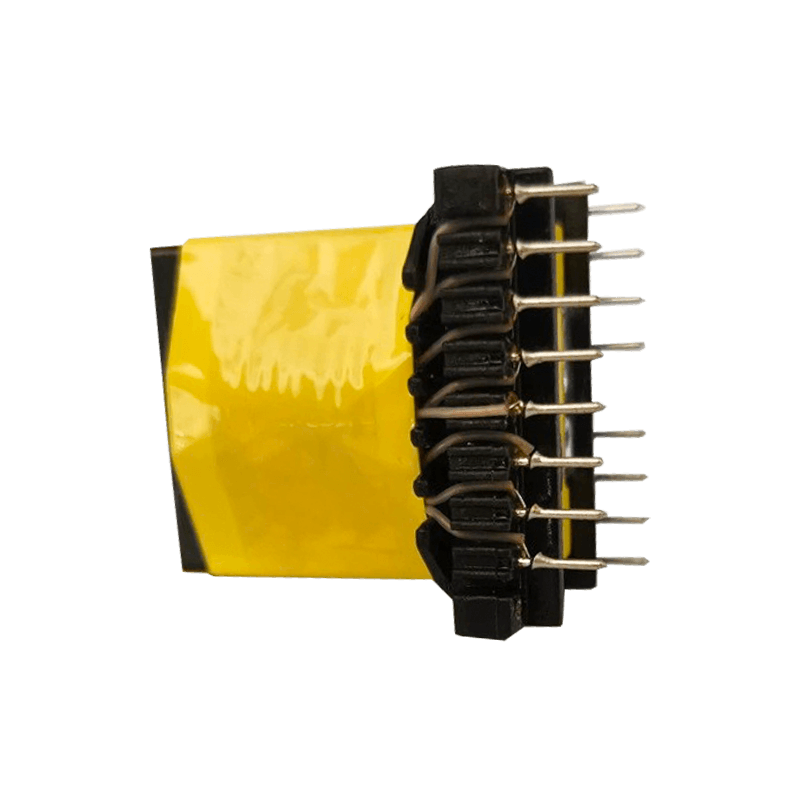

EP2834 EF EP7 EP10 EP13 SMD 24v 12v 5v transformer

· input voltage -85V〜265V/AC, 50/60Hz

· Output voltage - 3.3V~36V/DC

· Po- 1000W Max.

· Product features - With high working frequency, high efficiency, small size, light weight and other characteristics

·Standard-UL,VDE, RoHS, 3C, CQC

DC-DC converters/ Lithium battery manufacturing equipment/ Vehicle OBC

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

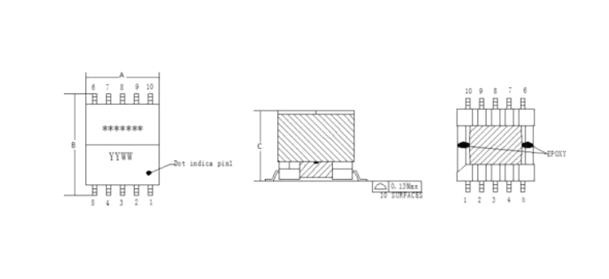

DIMENSIONS [MM:]

Mechanical dimensions

Type	Structure Type	Dinension(mm)			PinRow 1(mm)			PmPitch 2(mm)		ODPin(mm)	Note
Type	Structure Type	A	B	C	Pin	Pin Pitch	Pin	PinPitch	Row Pitch(mm)	ODPin(mm)	Note
EP7-001	Horizontal	8.0	10.5	5.0	4	2.50	4	2.50	10.50	S00.25B0.70	SMD
EP7-002	Horizontal	8.0	9.0	10.0	4	2.00	4	2.00	5.50	00.50	DIP
EP1(M)01	Horizontal	11.0	14.5	9.5	4	2.50	4	2.50	14.50	SQ0.25.0.70	SMD
EP10*002	Horizontal	11.0	11.0	12.0	4	2.50	4	2.50	7.50	00.60	DIP
EP13-001	Horizontal	14.0	15.4	11.0	5	2.50	5	2.50	15.40	S00.35-0.70	SMD
EP13*002	Horizontal	14.0	14.5	12.0	5	2.50	5	2.50	10.00	00.60	DIP

Product description:

Describe a transformer with one of a kind center kinds (EF, EP7, EP10, EP13), designed for surface mount programs (SMD), and able to offering more than one output voltages (24V, 12V, 5V). The unique characteristics and use instances of the sort of transformer might rely upon the details of the layout and meant utility.

1. **EF EP7 EP10 EP13:** EF, EP7, EP10, and EP13 are fashionable designations for transformer cores. They are available in various dimensions and shapes, with each type designed for particular applications.

2. **SMD:** Surface Mount Device. This indicates that the transformer is designed for surface mount era, wherein components are set up without delay onto the floor of a published circuit board (PCB) rather than being inserted through holes.

3. **24V 12V 5V:** These are the output voltages of the transformer. Transformers are gadgets that transfer electric energy between two or greater circuits through electromagnetic induction. In this situation, the transformer seems to have multiple output voltage alternatives: 24 volts, 12 volts, and 5 volts.

4. **Transformer:** EP2834 EF EP7 EP10 EP13 SMD 24v 12v 5v Transformer are gadgets that can boom or decrease the voltage of an alternating modern (AC). They include two coils of twine (primary and secondary) wound around a magnetic core. The enter voltage is implemented to the primary coil, and the output voltage is induced inside the secondary coil.

EP2834 EF EP7 EP10 EP13 SMD 24v 12v 5v transformer

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing EP2834 EF EP7 EP10 EP13 SMD 24v 12v 5v transformer suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM EP2834 EF EP7 EP10 EP13 SMD 24v 12v 5v transformer direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.
