Rod Inductor

Ferrite core high frequency choke rod coil 470mh inductor

Product parameters:

Different range of freuency from 50khz to 500khz

Compact desin,lighter weight with various mounting options

High rated current and high inductance values with a compact design

Better frequency response due to a low number of turns

Standard:

RoHS

UL 94v-0

Compliant with RoHS

Plastic materials meet UL 94 v-0 requirements

Power Supply / Switching Circuit/ EMI, SCR and Triac control EMI, SCR and Triac

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

Part number construction

Mechanical dimensions

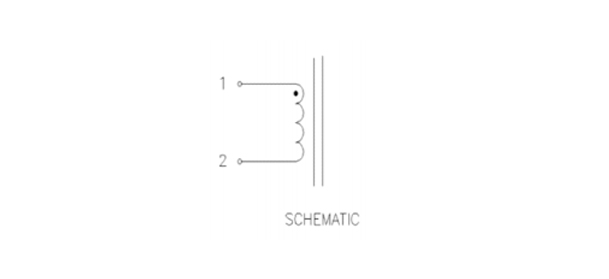

Schematic

Type	Structure Type	Dimension(mm) AxBxC	(uH MIN)	Idc(Amps)	DCR (QMax)
YZH004N0420	Horizontal	6x6x21	4	3.0	0.113
YZH004N0421	Vertical	6x6x21	4	3.0	0.113
VZH005N0520	Horizontal	8x8x21	5	4.0	0.1
VZH005N0521	Vertical	8x8x21	5	4.0	0.1
VZH006N0625	Horizontal	9x9x26	6	5.0	0.1
YZH006N0626	Vertical	9x9x26	6	5.0	0.1
VZH007N0725	Horizontal	11x11x26	7	6.0	0.1
VZH007N0726	Vertical	11x11x26	7	6.0	0.1
YZH008N0825	Horizontal	12x12x26	8	7.0	0.1
YZH008N0826	Vertical	12x12x26	8	7.0	0.1
YZH009N0935	Horizontal	13x13x36	9	8.0	0.1
YZH009N0936	Vertical	13x13x36	9	8.0	0.1
YZH010N1035	Horizontal	16x16x36	10	12.0	0.1
YZH010N1036	Vertical	16x16x36	10	12.0	0.1

Product description:

Introducing the Ferrite Core High Frequency Choke Rod Coil 470mh Inductor, a modern inductor designed for best overall performance in diverse programs. Here are its key homes:

1. **Wide Frequency Range:** This inductor operates seamlessly across a vast frequency spectrum, ranging from 50kHz to 500kHz, making it flexible for specific digital applications.

2. **Compact and Lightweight Design:** The Ferrite Core High-Frequency Choke boasts a compact design, resulting in a lighter weight compared to conventional counterparts. This guarantees flexibility in mounting options and allows ease of integration into diverse digital systems.

3. **High Rated Current and Inductance Values:** Despite its compact layout, this inductor gives excessive-rated contemporary and inductance values. This makes it an ideal choice for programs wherein area is a top rate without compromising on overall performance.

4. **Optimized Frequency Response:** Thanks to a low quantity of turns, the Ferrite Core Choke gives a better frequency reaction. This optimized reaction complements the performance and reliability of your electronic circuits.

5. **Compliance with Industry Standards:**

- **RoHS Compliant:** The inductor adheres to the Restriction of Hazardous Substances (RoHS) general, making sure environmental duty.

- **UL 94V-zero Certification:** The plastic substances used inside the production meet the UL 94V-zero flammability rating, improving protection and reliability.

6. **Versatile Applications:**

- **Power Supply:** Ideal for energy deliver applications, ensuring balance and efficiency.

- **Switching Circuit:** Well-desirable for switching circuits, contributing to seamless and reliable operations.

- **EMI, SCR, and Triac Control:** Effectively manages Electromagnetic Interference (EMI) and controls Silicon-Controlled Rectifier (SCR) and Triac circuits.

The Ferrite Core High-Frequency Choke Rod Coil is a dependable and high-performance solution on your strength supply, switching circuit, and EMI manage wishes. Its adherence to enterprise standards and compact layout make it a versatile and green preference for various digital programs.

Ferrite core high frequency choke rod coil 470mh inductor

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing Ferrite core high frequency choke rod coil 470mh inductor suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM Ferrite core high frequency choke rod coil 470mh inductor direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.
