OEM YZ30S15-1204B-PCB Mount Encapsulated Transformer class B 230v to 12v transformer Suppliers, Manufacturers

EI30 1.5VA PCB Encapsulated Transformer

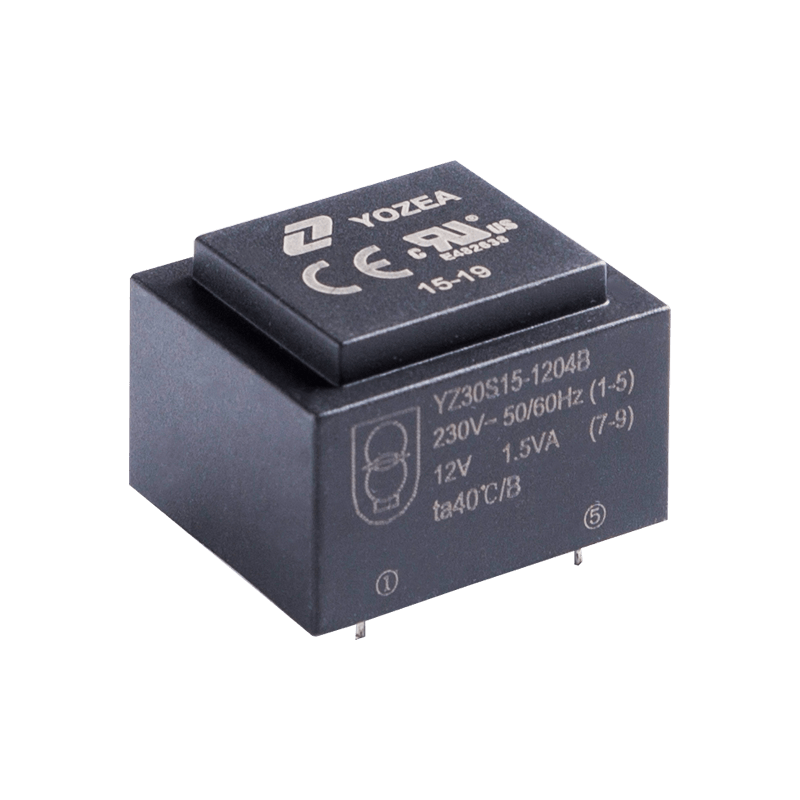

YZ30S15-1204B-PCB Mount Encapsulated Transformer class B 230v to 12v transformer

· Core Type EI 30/12.5

· Power - 1.5VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 80g

Temperature Controller/ digital meter/ Laboratory Instruments

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage： 115V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30US20-0604B	115	6	333.3	10.6	1	ta 40/B
YZ30US20-0724B	115	7.2	277.8	12.7	1	ta 40/B
YZ30US20-0904B	115	9	222.2	15.9	1	ta 40/B
YZ30US20-1004B	115	10	200	17.6	1	ta40/B
YZ30US20-1204B	115	12	166.7	21.2	1	ta 40/B
YZ30US20-1504B	115	15	133.3	26.5	1	ta 40/B
YZ30US20-1804B	115	18	111.1	31.8	1	ta40/B
YZ30US20-2404B	115	24	83.3	42.4	1	ta 40/B
YZ30UD20-0604B	115	2x6	2x166.7	2x9.9	2	ta 40/B
YZ30UD20-0724B	115	2x7.2	2x138.9	2x11.9	2	ta 40/B
YZ30UD20-0904B	115	2x9	2x111.1	2x14.9	2	ta 40/B
YZ30UD20-1004B	115	2x10	2x100.0	2x16.6	2	ta 40/B
YZ30UD20-1204B	115	2x12	2x83.3	2x19.9	2	ta 40/B
YZ30UD20-1504B	115	2x15	2x66.7	2x24.9	2	ta 40/B
YZ30UD20-1804B	115	2x18	2x55.6	2x29.8	2	ta40/B
YZ30UD20-2404B	115	2x24	2x41.7	2x39.8	2	ta 40/B

Primary Voltage： 115VX2
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
		(V)
YZ30XD15-0607B	2X115	2x6	2X125.0	2x9.7	3	ta 70/B
YZ30XD15-0907B	2X115	2x9	2X83.3	2x14.5	3	ta 70/B
YZ30XD15-1207B	2X115	2x12	2X62.5	2x19.4	3	ta 70/B
YZ30XD15-1507B	2X115	2x15	2X50.0	2x24.3	3	ta 70/B
YZ30XD15-1807B	2X115	2x18	2X41.7	2x29.1	3	ta 70/B
YZ30XD15-2407B	2X115	2x24	2X31.2	2x38.8	3	ta 70/B

Primary Voltage：230V
Pari Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
Y230S15-0607B	230	6	250	9.7	1	ta 70/B
YZ30S15-0727B	230	7.2	208.3	11.6	1	ta 70/B
YZ30S15-0907B	230	9	166.7	14.5	1	ta 70/B
YZ30S15-1007B	230	10	150	16.1	1	ta 70/B
YZ30S15-1207B	230	12	125	19.4	1	ta 70/B
YZ30S15-1507B	230	15	100	24.3	1	ta 70/B
Y230S15-1807B	230	18	83.3	29.1	1	ta 70/B
YZ30S15-2407B	230	24	62.5	38.8	1	ta 70/B
YZ30D15-0607B	230	2x6	2x125.0	2x9.7	2	ta 70/B
YZ30D15-0727B	230	2x7.2	2x104.2	2x11.6	2	ta 70/B
YZ30D15-0907B	230	2x9	2x83.3	2x14.5	2	ta 70/B
YZ30D15-1007B	230	2x10	2x75.0	2x16.1	2	ta 70/B
YZ30D15-1207B	230	2x12	2x62.5	2x19.4	2	ta 70/B
YZ30D15-1507B	230	2x15	2x50.0	2x24.3	2	ta 70/B
YZ30D15-1807B	230	2x18	2x41.7	2x29.1	2	ta 70/B
YZ30D15-2407B	230	2x24	2x31.3	2x38.8	2	ta 70/B

Product description:

Model Number Format: Typically, transformer model numbers consist of various segments that denote specific characteristics. Common segments include the power rating, voltage input and output, and mounting style.

Power Rating: The "30S" in the model number may indicate a power rating, but the exact value would depend on the manufacturer's specifications.

Voltage: "230V to 12V" indicates that this transformer is designed to convert an input voltage of 230 volts to an output voltage of 12 volts.

Encapsulated Transformer: An encapsulated transformer is typically designed with its windings and core encased in a resin or epoxy material. This helps protect the transformer from moisture, dust, and other environmental factors. It also provides electrical insulation.

Class B: The "Class B" designation suggests that this transformer is designed to meet certain temperature ratings and insulation requirements. Class B insulation systems are commonly used in transformers to withstand elevated temperatures.

Mounting Style: "PCB Mount" indicates that this transformer is designed for printed circuit board (PCB) installation, which is common in electronic applications.

To get a comprehensive understanding of the YZ30S15-1204B-PCB transformer, I would recommend reaching out to the manufacturer or consulting their datasheets or product documentation. Transformer specifications can vary significantly based on the intended application, so it's crucial to have accurate and detailed information to ensure it suits your specific needs and safety requirements.
