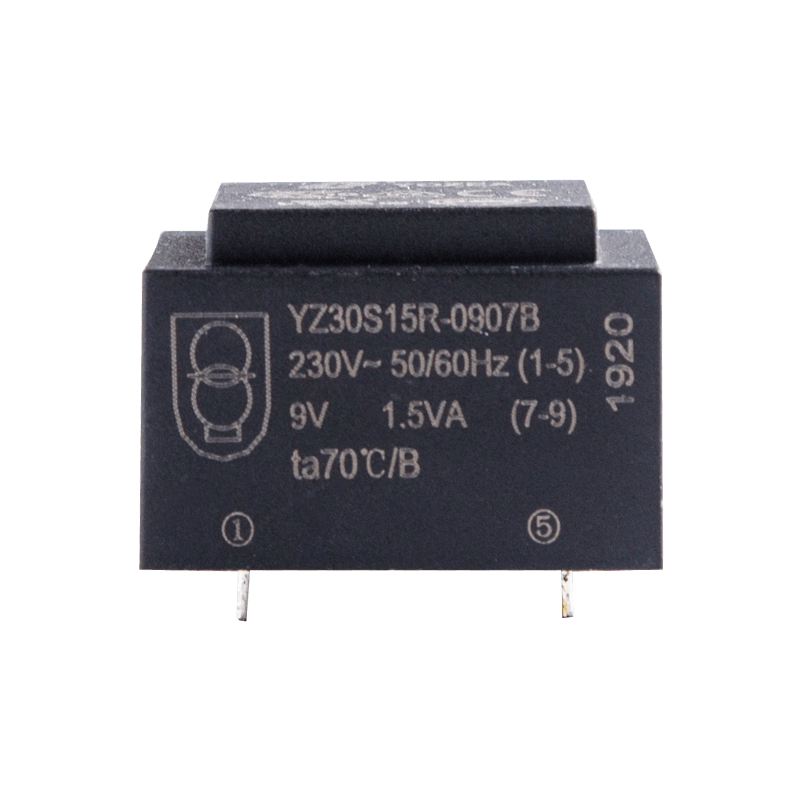

OEM YZ30S15R-0907B-1.5w CE ROHS 220v 230v to 9v pcb mounting transformer Suppliers, Manufacturers

Primary Voltage： 115V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30US20-0604B	115	6	333.3	10.6	1	ta 40/B
YZ30US20-0724B	115	7.2	277.8	12.7	1	ta 40/B
YZ30US20-0904B	115	9	222.2	15.9	1	ta 40/B
YZ30US20-1004B	115	10	200	17.6	1	ta40/B
YZ30US20-1204B	115	12	166.7	21.2	1	ta 40/B
YZ30US20-1504B	115	15	133.3	26.5	1	ta 40/B
YZ30US20-1804B	115	18	111.1	31.8	1	ta40/B
YZ30US20-2404B	115	24	83.3	42.4	1	ta 40/B
YZ30UD20-0604B	115	2x6	2x166.7	2x9.9	2	ta 40/B
YZ30UD20-0724B	115	2x7.2	2x138.9	2x11.9	2	ta 40/B
YZ30UD20-0904B	115	2x9	2x111.1	2x14.9	2	ta 40/B
YZ30UD20-1004B	115	2x10	2x100.0	2x16.6	2	ta 40/B
YZ30UD20-1204B	115	2x12	2x83.3	2x19.9	2	ta 40/B
YZ30UD20-1504B	115	2x15	2x66.7	2x24.9	2	ta 40/B
YZ30UD20-1804B	115	2x18	2x55.6	2x29.8	2	ta40/B
YZ30UD20-2404B	115	2x24	2x41.7	2x39.8	2	ta 40/B

Primary Voltage： 115VX2
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
		(V)
YZ30XD15-0607B	2X115	2x6	2X125.0	2x9.7	3	ta 70/B
YZ30XD15-0907B	2X115	2x9	2X83.3	2x14.5	3	ta 70/B
YZ30XD15-1207B	2X115	2x12	2X62.5	2x19.4	3	ta 70/B
YZ30XD15-1507B	2X115	2x15	2X50.0	2x24.3	3	ta 70/B
YZ30XD15-1807B	2X115	2x18	2X41.7	2x29.1	3	ta 70/B
YZ30XD15-2407B	2X115	2x24	2X31.2	2x38.8	3	ta 70/B

Primary Voltage：230V
Pari Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
Y230S15-0607B	230	6	250	9.7	1	ta 70/B
YZ30S15-0727B	230	7.2	208.3	11.6	1	ta 70/B
YZ30S15-0907B	230	9	166.7	14.5	1	ta 70/B
YZ30S15-1007B	230	10	150	16.1	1	ta 70/B
YZ30S15-1207B	230	12	125	19.4	1	ta 70/B
YZ30S15-1507B	230	15	100	24.3	1	ta 70/B
Y230S15-1807B	230	18	83.3	29.1	1	ta 70/B
YZ30S15-2407B	230	24	62.5	38.8	1	ta 70/B
YZ30D15-0607B	230	2x6	2x125.0	2x9.7	2	ta 70/B
YZ30D15-0727B	230	2x7.2	2x104.2	2x11.6	2	ta 70/B
YZ30D15-0907B	230	2x9	2x83.3	2x14.5	2	ta 70/B
YZ30D15-1007B	230	2x10	2x75.0	2x16.1	2	ta 70/B
YZ30D15-1207B	230	2x12	2x62.5	2x19.4	2	ta 70/B
YZ30D15-1507B	230	2x15	2x50.0	2x24.3	2	ta 70/B
YZ30D15-1807B	230	2x18	2x41.7	2x29.1	2	ta 70/B
YZ30D15-2407B	230	2x24	2x31.3	2x38.8	2	ta 70/B

Product description:

The CE ROHS 220V 230V to 9V PCB Mounting Transformer is an electrical aspect designed for converting electric voltage in digital circuits. Here's a breakdown of its key functions:

1. **Input Voltage:**

- It is well matched with input voltages starting from 220V to 230V AC. This allows the transformer to be used in regions in which trendy mains voltage falls within this variety.

2. **Output Voltage:**

- The transformer outputs a solid voltage of 9V AC. This makes it suitable for powering digital gadgets or additives that require a 9V strength deliver.

3. **PCB Mounting:**

- The transformer is especially designed for smooth mounting onto revealed circuit boards (PCBs). This characteristic enhances its convenience and integration into electronic circuits, making it appropriate for diverse packages.

4. **CE Certification:**

- The CE (Conformité Européenne) certification indicates that the product complies with European Union protection, fitness, and environmental protection standards. This ensures that the transformer meets the important requirements for safe use inside the European marketplace.

5. **ROHS Certification:**

- The ROHS (Restriction of Hazardous Substances) certification signifies that the transformer is loose from positive risky materials together with lead, mercury, cadmium, and other materials dangerous to the surroundings. This certification aligns with environmental policies and demonstrates a commitment to green manufacturing.

In summary, this transformer is a dependable and compliant thing appropriate for electronic applications requiring a 9V electricity supply. Its CE and ROHS certifications offer assurance of exceptional, safety, and environmental duty. The PCB mounting feature makes it convenient for integration into electronic circuits.
