EI30 1.5VA PCB Encapsulated Transformer

YZ30S15-1507B-1.5VA 230v ac 15v 18vac small isolation ac transformer

· Core Type EI 30/12.5

· Power - 1.5VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 80g

PCB board/ fridge/ air conditioning

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage： 115V
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30US20-0604B	115	6	333.3	10.6	1	ta 40/B
YZ30US20-0724B	115	7.2	277.8	12.7	1	ta 40/B
YZ30US20-0904B	115	9	222.2	15.9	1	ta 40/B
YZ30US20-1004B	115	10	200	17.6	1	ta40/B
YZ30US20-1204B	115	12	166.7	21.2	1	ta 40/B
YZ30US20-1504B	115	15	133.3	26.5	1	ta 40/B
YZ30US20-1804B	115	18	111.1	31.8	1	ta40/B
YZ30US20-2404B	115	24	83.3	42.4	1	ta 40/B
YZ30UD20-0604B	115	2x6	2x166.7	2x9.9	2	ta 40/B
YZ30UD20-0724B	115	2x7.2	2x138.9	2x11.9	2	ta 40/B
YZ30UD20-0904B	115	2x9	2x111.1	2x14.9	2	ta 40/B
YZ30UD20-1004B	115	2x10	2x100.0	2x16.6	2	ta 40/B
YZ30UD20-1204B	115	2x12	2x83.3	2x19.9	2	ta 40/B
YZ30UD20-1504B	115	2x15	2x66.7	2x24.9	2	ta 40/B
YZ30UD20-1804B	115	2x18	2x55.6	2x29.8	2	ta40/B
YZ30UD20-2404B	115	2x24	2x41.7	2x39.8	2	ta 40/B

Primary Voltage： 115VX2
Part Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
YZ30XD15-0607B	2X115	2x6	2X125.0	2x9.7	3	ta 70/B
YZ30XD15-0907B	2X115	2x9	2X83.3	2x14.5	3	ta 70/B
YZ30XD15-1207B	2X115	2x12	2X62.5	2x19.4	3	ta 70/B
YZ30XD15-1507B	2X115	2x15	2X50.0	2x24.3	3	ta 70/B
YZ30XD15-1807B	2X115	2x18	2X41.7	2x29.1	3	ta 70/B
YZ30XD15-2407B	2X115	2x24	2X31.2	2x38.8	3	ta 70/B

Primary Voltage：230V
Pari Number	Primary (V)	Secondary (V)	Secondary (mA)	No- LoadVoltage (V)	Schematic No.	Ambient Temperature
Y230S15-0607B	230	6	250	9.7	1	ta 70/B
YZ30S15-0727B	230	7.2	208.3	11.6	1	ta 70/B
YZ30S15-0907B	230	9	166.7	14.5	1	ta 70/B
YZ30S15-1007B	230	10	150	16.1	1	ta 70/B
YZ30S15-1207B	230	12	125	19.4	1	ta 70/B
YZ30S15-1507B	230	15	100	24.3	1	ta 70/B
Y230S15-1807B	230	18	83.3	29.1	1	ta 70/B
YZ30S15-2407B	230	24	62.5	38.8	1	ta 70/B
YZ30D15-0607B	230	2x6	2x125.0	2x9.7	2	ta 70/B
YZ30D15-0727B	230	2x7.2	2x104.2	2x11.6	2	ta 70/B
YZ30D15-0907B	230	2x9	2x83.3	2x14.5	2	ta 70/B
YZ30D15-1007B	230	2x10	2x75.0	2x16.1	2	ta 70/B
YZ30D15-1207B	230	2x12	2x62.5	2x19.4	2	ta 70/B
YZ30D15-1507B	230	2x15	2x50.0	2x24.3	2	ta 70/B
YZ30D15-1807B	230	2x18	2x41.7	2x29.1	2	ta 70/B
YZ30D15-2407B	230	2x24	2x31.3	2x38.8	2	ta 70/B

Product description:

YZ30S15-1507B: This is a product model or part number for the transformer. It may be used for identification and ordering purposes.

1.5VA: This indicates the apparent power rating of the transformer. The VA (Volt-Ampere) rating represents the product of the voltage and current in an AC circuit. In this case, the transformer can handle up to 1.5 VA.

230V AC: This is the primary voltage rating. It means the transformer is designed to work with a primary input voltage of 230 volts AC.

15V: This is the secondary voltage rating. The transformer will produce an output voltage of 15 volts AC.

18V AC: This might be an additional secondary voltage rating. Some transformers have multiple secondary windings with different voltage outputs. In this case, there may be a second output providing 18 volts AC.

Small Isolation AC Transformer: This is a description of the transformer's purpose and function. It's an isolation transformer, which means it electrically isolates the primary and secondary windings to prevent direct electrical connection between the input and output. Isolation transformers are often used for safety, noise reduction, and to break ground loops in electrical circuits.

Overall, the YZ30S15-1507B-1.5VA transformer is designed for applications where a 230V AC input needs to be transformed into a lower voltage output, and it provides isolation between the primary and secondary circuits. The dual voltage outputs (15V and 18V AC) suggest versatility in how it can be used in different applications.

YZ30S15-0607B-CQC VDE Approved High Quality Electronic Curtain Electric meter EI 30

YZ30S15-0907B-VDE Approved EI 30 Input AC 230V 150mA 125mA 100mA Factory Transformer

YZ30S15-1007B-1.5va Electric Transformer Power Transformer 220v 230v

YZ30S15-1204B-PCB Mount Encapsulated Transformer class B 230v to 12v transformer

YZ30S15-1507B-1.5VA 230v ac 15v 18vac small isolation ac transformer

YZ30US15-1207B-1.5w 230v 380v 12v 7v ac power transformer ac 12v 125ma

YZ30S15R-0907B-1.5w CE ROHS 220v 230v to 9v pcb mounting transformer

· Core Type EI 30/12.5

· Power - 1.5VA

· Input voltage - 230V or 115V, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 500Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 80g

ENCAPSULATED
TRANSFORMERS (1.5VA) EI30

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ30S15-1507B-1.5VA 230v ac 15v 18vac small isolation ac transformer suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ30S15-1507B-1.5VA 230v ac 15v 18vac small isolation ac transformer direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates

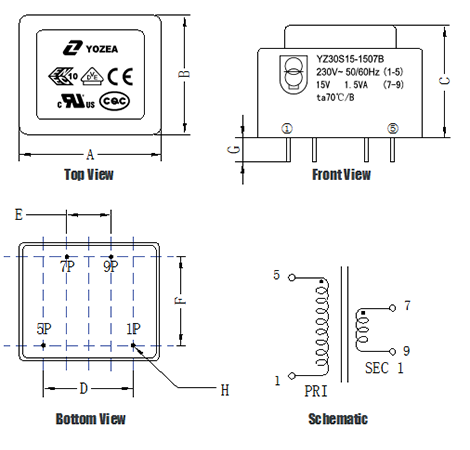

1.CONFIGURATION ＆ DIMENSION：m/m

A	B	C	D	E	F	G	H
32.5±0.5	27.5±0.5	24.0±0.5	20.0±0.5	10.0±0.5	20.0±0.5	3.5±0.5	φ0.8±0.1

2.ELECTRONIC CHARACTER：

Input Voltage VAC	Input Power No Load (Pi)VA	Input Power Load (Pi)VA	Pri Current No Load (Ii)mA	Sec Voltage No Load (Vo)VAC	Sec Voltage (Vo)VAC	Sec Current (Io)mA	Output Power VA


230V	≤0.5W	≤3.0W	≤12.0mA	24.3V±10%	15.0V±10%	100mA(7-9)	1.5VA

3.INSULATION RESISTANCE:
THE INSULATION RESISTANCE BETWEEN COIL TO COIL AND COIL TO CORE IS OVER 100MΩ AT DC 500V.
4.DIELECTRIC STRENGTH:
A.3750V AC 50Hz 1mA BETWEEN PRI TO SEC FOR 60 SEC.
5.MATERIAL LIST:

NO.	ITEM	MATERIAL	MANUFACTURER	UL
1	CORE	AH1000	JIANGYIN HENGTONG ELECTRIC APPLIANCES CO LTD OR VARIOUS

2	BOBBIN	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

3	ENCLOSURE	1403G(a)	NAN YA PLASTICS CORP PLASTICS 3RD DIV	E130155

4	WIRE	MW 79-C 155	ZHEJIANG LANGLI ELECTRIC EQUIPMENTS CO LTD	E222214

5	POTTING COMPOUND	21-2350-(XX)	RAMPF POLYMER SOLUTIONS GMBH ＆ CO KG	E111148

Max Ambient Temperature	Enameled Wire Temperature Rating	Input Voltage Range	Transformer Temperature Rise

ta 70℃	2UEW/155℃	230VAC±20%	≤35K

SPECIFICATION FOR APPROVAL
PART NO	PART NAME		DATE		PAGE
YZ30S15-1507B	EI30-12.5		2018/2/5		1/1
Hangzhou Yozea Electronic Co.,Ltd TEL:0571-85229805/FAX:0571-85229815 E-MAIL: [email protected] http://www.yozea.com		APP.		CHECK	DRAWN
